Solar collector for swimming pools OKU 1002

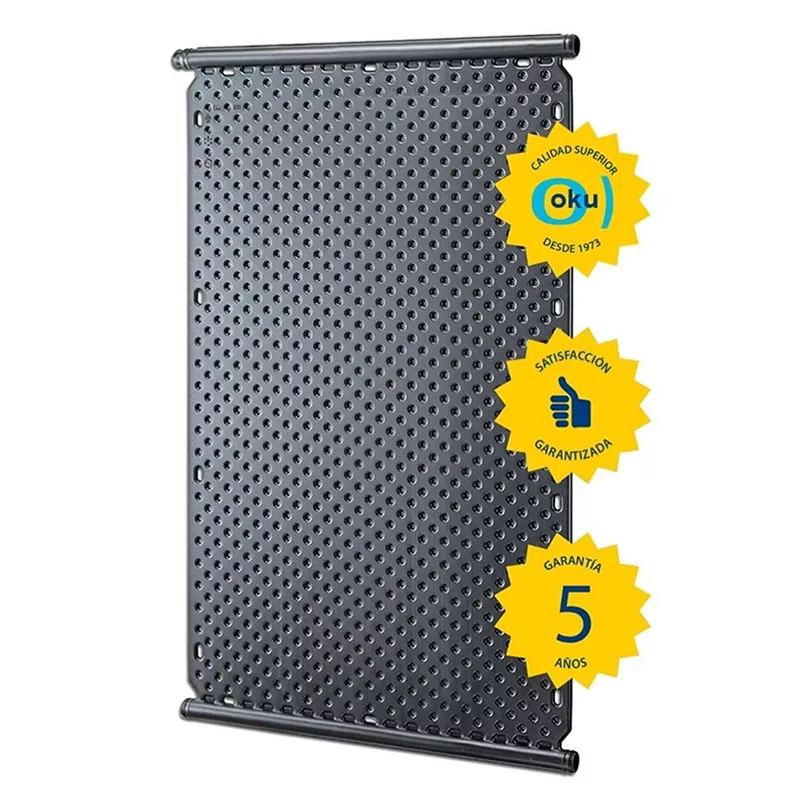

OKU 1002 passable solar panel

OKU solar panels are manufactured in a single, virtually unbreakable piece. Corrosion-free and resistant to all chemical treatments, the solar thermal panels are particularly suitable for heating swimming pools. Made of high-density polyethylene, cast in a single piece without welding, they are suitable for all chemical pool treatments and are uniquely resistant and long-lasting.

You already know the problem: an unheated outdoor pool is certainly only pleasant for a few months in summer, which is too little in view of the huge investments and maintenance costs involved. An indoor pool must be heated all year round, even in summer.

Heating swimming pools with conventional energy leads to higher costs and represents an additional pollution of nature.

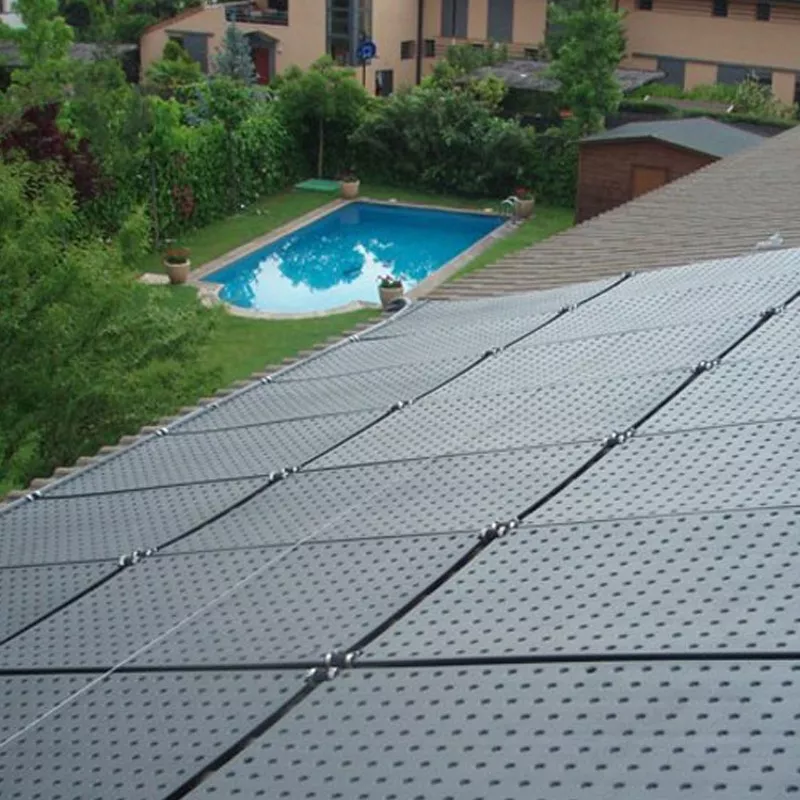

Swimming pool heating is an ideal area of application for the use of solar energy. Since very high temperatures are not required, but large volumes of water have to be heated, it is useful to use a relatively high flow rate at a relatively low thermal level in these installations.

In this way, an optimum degree of efficiency is achieved with solar pool heating.

Main characteristics

PASSABLE SOLAR PANEL. Cast in one piece, virtually unbreakable. Corrosion-free and resistant to all chemical treatments.

RESISTANT TO CHEMICALS. Completely resistant to the chemical products that we can find in any installation.

HIGH EFFICIENCY. Up to 0.8 Kw./h/m². Guaranteed performance. Higher temperature increase with less panel surface.

DEGREE OF ACTION. Valid for heating any pool surface. Ideal system to double the use of the pool.

FROST PROTECTION. An important feature, especially on flat roofs. Certified by TÜV Rheinland from -50ºC to 115ºC.

EASY TO INSTALL AND MAINTAIN. The solar panel is easy and quick to install. modular system ready to be expanded over time.

Advantages of OKU panels

• Modular system (easily expandable)
• Unlimited dimensions of the absorber fields. Several fields connected in parallel.
• Horizontal or vertical distribution pipe possible.
• Low weight (6Kg) - easy handling dimensions - easy installation.
• High degree of action.
• Full surface flow.
• Frost resistant (water filled)
• TÜV certified
• Passable
• Cast in one piece.

how are the panels connected?

• Sleeves with 2 clamps
• Connecting spigot
• PVC pipe

Technical data OKU 1002 panel

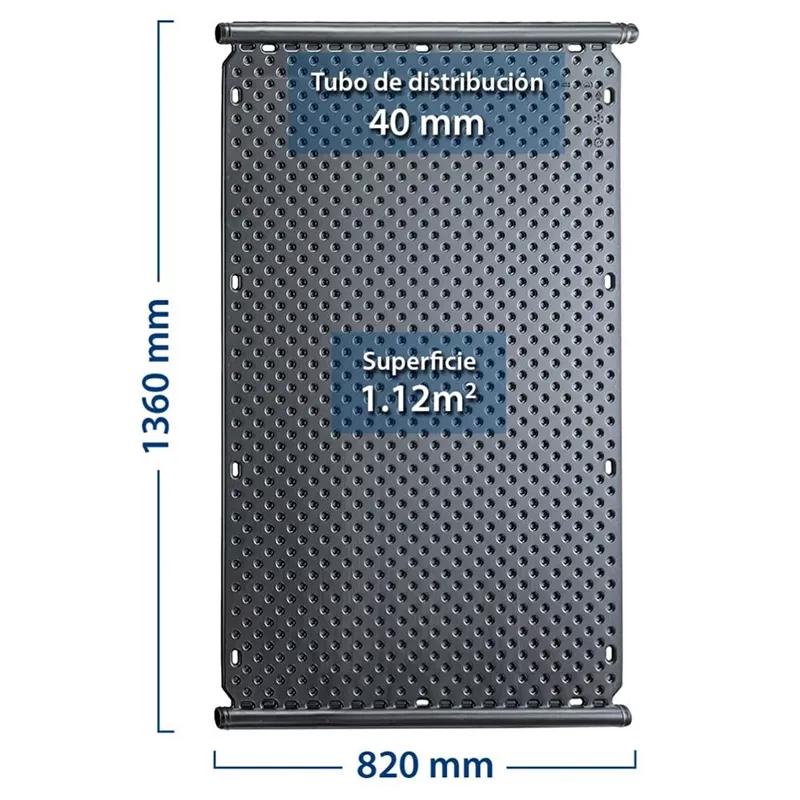

• Size: Solar panel length 1,360 mm and width 820 mm.
• Surface area: 1.12 m2
• With integrated collector pipe Ø 40 mm and two connecting sleeves Ø 25 mm
• Low pressure loss 0.003 bar at 200 l/h/m²
• Flow rate 150 -250 litres / m² / hour
• Weight approx. 6 kg / m²
• Water content 6 litres / m²
• Test pressure 4.5 bar at TN
• Operating pressure up to 1.2 bar at 40°C
• Degree of efficiency up to 0.8 KW / h / m²
• Average value 0,5 -0,6 KW / h / m²
• Resistance to freezing and trafficability.
