Exactus Manual Dosing Pump 2 L/H 5 BAR
ref: 05BD57153
ean13: 8435283961137
sku: 57153
- Dosing pump Astralpool mod. EXACTUS analogue 2-5
- Cod. 57153
- Manually adjustable flow rate by a potentiometer that determines the injection frequency
- Flow rate 2 l/h See table
- PP head, PTFE Membrane and FPM Valve
- Easy installation with minimum maintenance
- Installation kit with suction filter, injection valve and suction/discharge hose
€239.00
IVA included
Free shipping
Technical characteristics

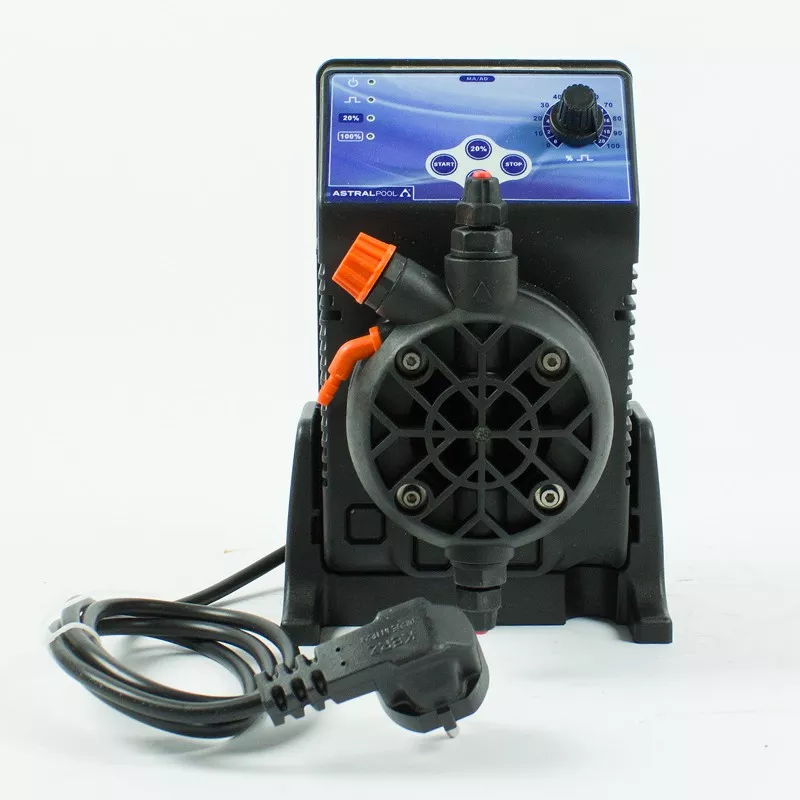

Dosing pump Astralpool Exactus
Metering pumps are a type of pump whose purpose is to inject a liquid (in swimming pools it is normal to inject a liquid reducing agent, ph increaser or liquid chlorine) into a fluid line. There are two types of dosing pumps: peristaltic pumps and diaphragm pumps. There are also models that allow you to control the parameter of the product you are dosing, i.e. control the pH level or control the chlorine level.

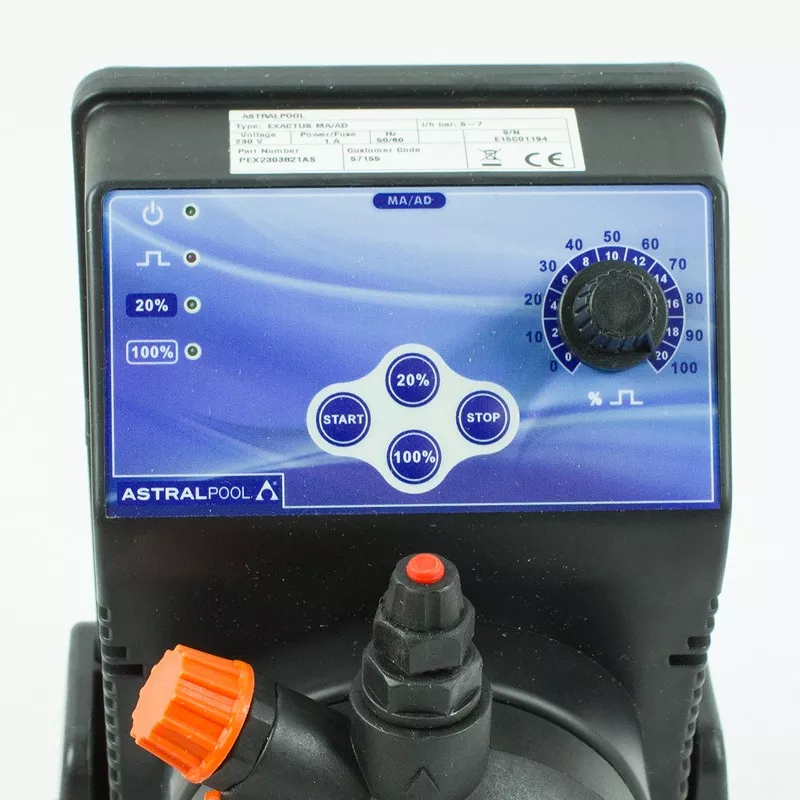

The Exactus range of dosing pumps Astralpool have a manually adjustable flow rate with a potentiometer, which determines the frequency of the injections. Adjustable from 0 to 100%.
There is also the possibility of a more precise flow regulation at low frequencies.
Technical characteristics of the Exactus Manual dosing pump.
- Flow rate manually adjustable by potentiometer.
- Flow rate of 2 lts/h.
- Pressure: 5 BAR.
- Equipment complies with CE standards. IP-65 protection.
- Electrical connection 220/240 V 50/60 Hz. Materials in contact with the liquid: polypropylene, viton and teflon.
- Control panel protection with transparent polycarbonate cover and corresponding gaskets
- Anti-humidity touch display.
- Built-in drain valve.
- No lubrication required, minimum maintenance.
- Pump head: PP (polypropylene)
- Diaphragm: PTFE (Teflon)
- Valves: FPM (viton) lip valve
Box contents:
- Exactus Manual Dosing Pump 2L/H 5 BAR
- Complete suction filter (PP-FPM viton),
- Injection valve (PP-FPM viton)
- Suction/impulsion hose 2m + 2m PVC;
- 2m PE distribution hose.
Data Sheet
- Pump type
- Electromagnetic
- Allows level control
- No
- Pump control
- Analogue
- Automatic control of
- No automatic control
