Boquilla Impulsi
Boquilla Impulsi Boquilla Impulsi Boquilla Impulsi

Multiflow Discharge Nozzle d.50 PN.10

ref: 03BO24413 ean13: 8420382012217 sku: 24413
8 reviews
  • To be glued inside a Ø 50 mm PN 10 pipe.
  • Made of ABS, white colour
  • for swimming pools to be glued to the pipe.
  • They incorporate the "Multiflow" system, which allows you to choose the diameter and therefore the flow of water that will pass through the nozzles.
Questions about this product?
Discuss it with us and ask us. Our technicians will solve your doubts.
€4.85 IVA included
€9.90 of Shipping + info

Technical characteristics

Discharge nipple Astralpool 24413

To be glued to the inside of a Ø 50 mm PN 10 pipe. Made of white ABS, with "Multiflow" system, which allows you to choose the diameter and therefore the flow rate of water that will pass through the nozzles.

Maximum flow recommended for a maximum flow rate of 4 m/sec, according to UNE 13451-1 standard:

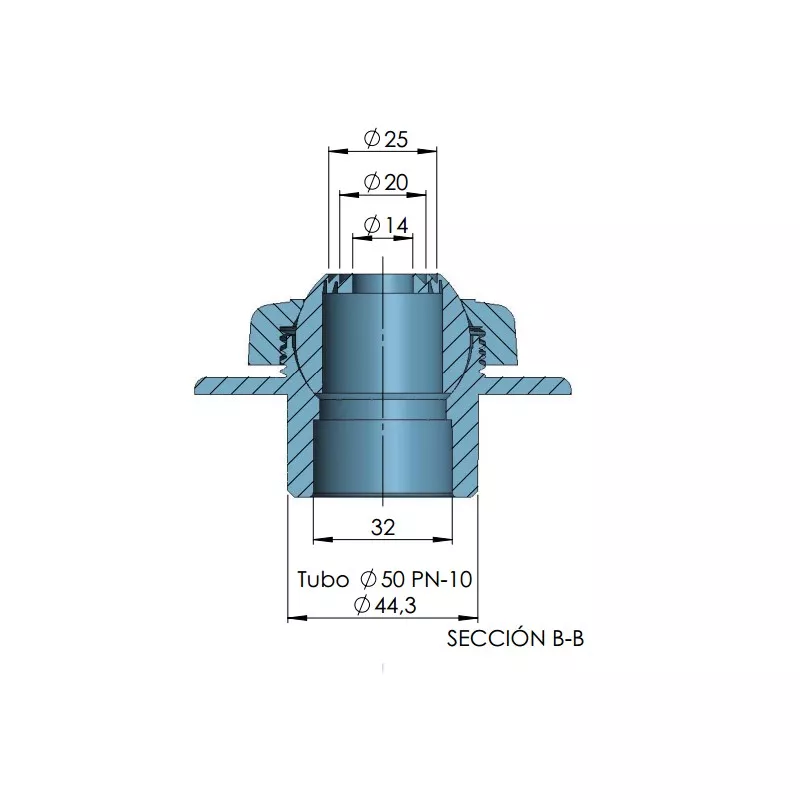

  • Ø 14= 2,2 m3/h.
  • Ø20 = 4,5 m3/h.
  • Ø25 = 7 m3/h.

Data Sheet

Coating
Concrete
Manufactured in
Plastic
PN
10
Type of accessory
Discharge nozzle
