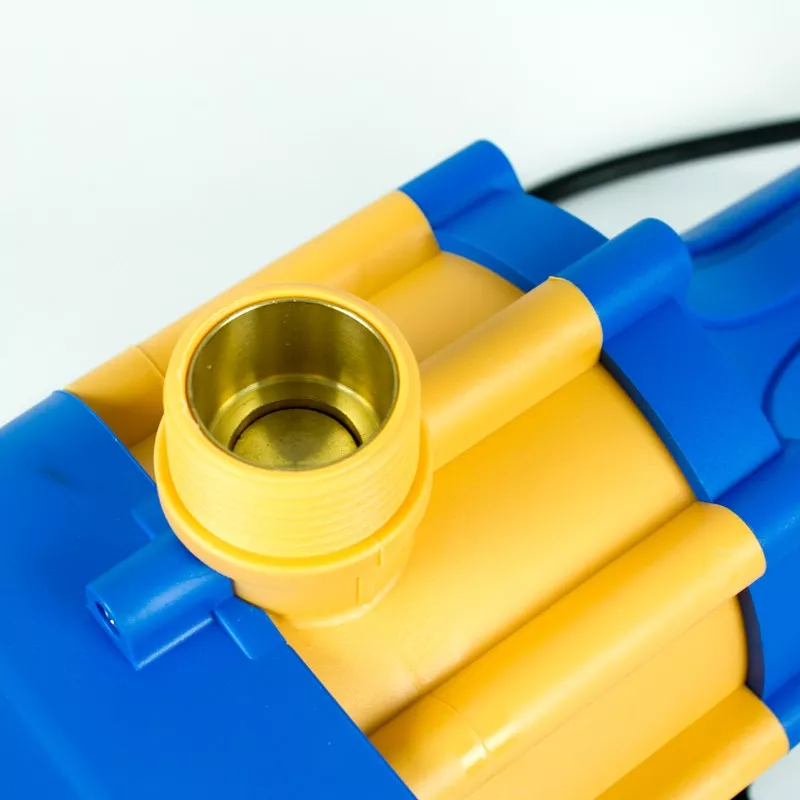

Pressure Controller Presscontrol
ref: 05GPAC1004309
sku: 1004309
- Electronic pressure device
- Automatically controls the starting and stopping of the pump
- Suitable for pumps up to 2 HP
- Protects against dry running
- Start pressure 1.5 bar max. permissible pressure 10 bar
- Water connections 1
- Recognises malfunctions and signals them with a red indicator, then press the RESET button to clear the fault
€119.00
IVA included
Technical characteristics
Pressure Controller Presscontrol
- Presscontrol is a device with a new concept for the control of pumps for domestic use.
- It is capable of simultaneously detecting pressure and flow as well as automatically managing the pump operation.
- It replaces the traditional expansion tank system, protecting the pump in the event of a water shortage.
- Much more compact than traditional systems, it is totally reliable, robust and easy to install.
Presscontrol features
- Switches the pump on and off depending on the opening or closing of the tap.
- Stops the pump in case of water shortage.
- Reduces and maintains constant pressure during use.
- Eliminates the effects of water hammer.
- Automatic stop in case of lack of water.
- Pressure regulator for pump automation.
- Incorporates a check valve, voltage indicator, power indicator, alarm indicator and reset button.
- Starting pressure 1.5 Kg/cm2. Maximum pressure 10 Kg/cm2. Maximum intensity 10 Amp. Voltage 220 volt. single-phase.
- Connection 1" male.
- Supplied with cable and plug.
- Single-phase supply voltage 230 V
- Acceptable voltage variations ± 10%
- frequency 50-60 Hz
- maximum current 8 (8) Un
- maximum power 1,5 kW (2 HP)
- It is capable of controlling a single-phase motor with a maximum power of 1.5 kW equivalent to 2 HP.
Data Sheet
- Product Type
- Electronic Control
