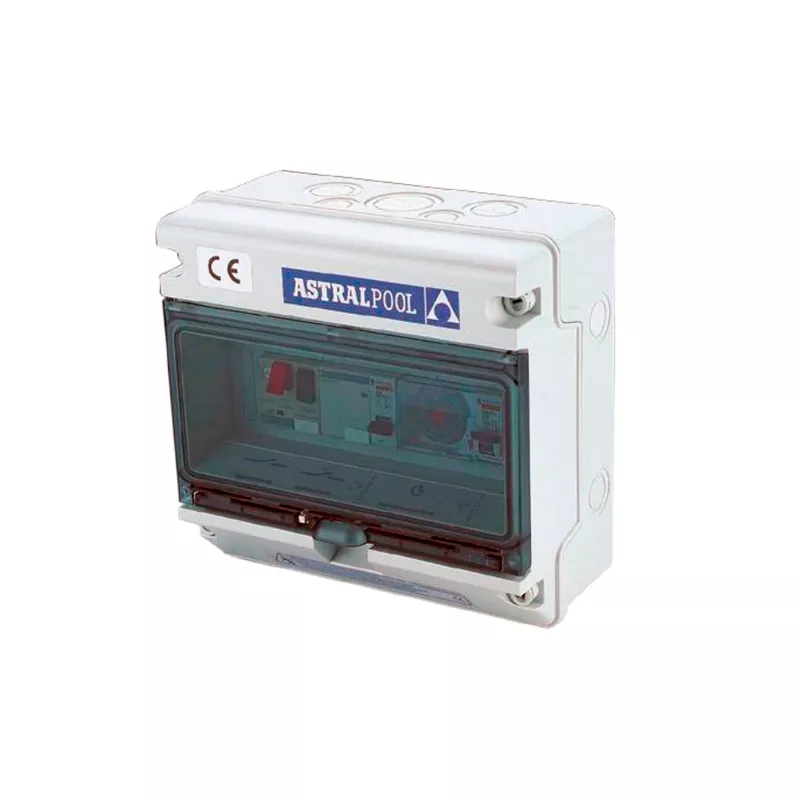

Swimming pool control panel for 1 pump 3/4-1 HP + light control
ref: 04AR25723
ean13: 8420382637311
sku: 25723
- Control panel for filtration pump from 3/4 to 1 CV
- IP65 watertight cabinet
- Compatible with 230 V and 380 V
- Composed of: Protection by circuit breaker, automatic/stop/manual switch, circuit breaker, timer, contactor and circuit breaker for spotlight
- TRANSFORMER NOT INCLUDED
- Easy and simple to install and program
€219.00
IVA included
Free shipping
Technical characteristics
what type of pool is this panel suitable for?
- For pools with a ¾-1CV pump
- It allows you to set it in manual, off or automatic mode
- Clock timer
- Switch for spotlights
- TRANSFORMER NOT INCLUDED
Features Box 25723:
IP-65 protection. Transparent glass with lock and key. All products are compatible with
24H control clock with programming steps every ¼h. Connection for remote control of the pump (run/stop,...) for auxiliary equipment (cold detector, level control...). All products are delivered with:
- wiring diagram
- Connection diagram
- installation instructions
- CE conformity certificate
- cable gland for each cable entry and exit
- Screws and plugs (4) for wall mounting.
- Circuit breaker protection
- Contactor,
- 24 h programming clock.
- 3 positions: Auto / 0 / manual.
- Protected output for underwater light.
Informative note:
Depending on the nominal current of the filter pump, the type of cabinet must be selected
Data Sheet
- Type of current
- Single-phase 220V
- For pumps
- 0.75 HP - 1 HP
- Lighting control
- Yes
- Transformer
- Without transformer
