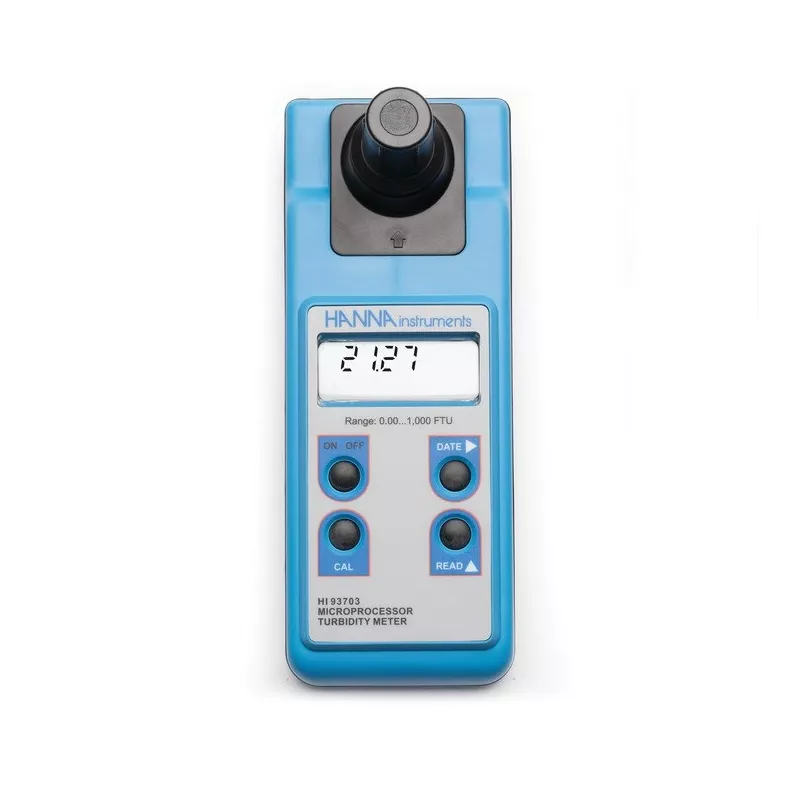

Turbidimeter Hanna HS93703POOL
ref: 01ESHI93703C
sku: HS93703POOL
- Photometer Turbidimeter HI93703
- Manufacturer: Hanna
- Code: HS93703C
- Portable equipment capable of providing an accuracy in situ equal to a laboratory
- Range 0.00-50.00 FTU and 50-1000 FTU
- Silicon photocell sensor and infrared LED light source
- Easy to use and 3-point calibration
- Designed to international ISO 7027 standard
- Complies with RD 487/2022 on Legionellosis
- Complies with ISO 7027:2016, where the limits and variables to be taken into account in the turbidity measurement and EPA 180.1 standard are established
- Complies with RD 742/2013
- Certificate of compliance with the UNE-ISO 17381 standard issued by the manufacturer
€825.00
Free shipping
Bought together Usually
Actual product
Items:
1
Total price:
€825.00
Technical characteristics
what is turbidity?
Turbidity is one of the most important parameters in determining drinking water quality. Once considered an essentially aesthetic characteristic of drinking water, there is now significant evidence that controlling turbidity is a competent protection against pathogens. In natural waters, turbidity measurements are taken for general water quality and compatibility in applications involving aquatic organisms. The control and treatment of wastewater used to be based solely on turbidity control. Nowadays, turbidity measurement at the end of the wastewater treatment process is necessary to verify that the values are within the regulations.
Turbidity of water is an optical property that causes light to be scattered and absorbed, rather than transmitted. The scattering of light passing through a liquid is mainly caused by the suspended solids present. The higher the turbidity, the greater the amount of scattered light. Even a very pure liquid will scatter light to some extent, as no solution has zero turbidity.
Turbidimeter Hanna HS93703C
HS93703C Turbidity meter. This meter uses an infrared light source and a state-of-the-art optical system to provide consistently accurate turbidity measurements.
The two operating ranges (0.00 to 50.00 NTU and 50 to 1000 NTU) allow this meter to be used in any type of application
It has the GLP function, which allows you to recall, at any time, the stored data referring to the last calibration performed.
The light beam passing through the sample is scattered in all directions. The intensity and pattern of the scattered light is affected by many variables, such as the wavelength of the incident light, particle size and shape, refractive index and colour. The optical system of the HS93703 includes an LED and a scattered light detector (90°).

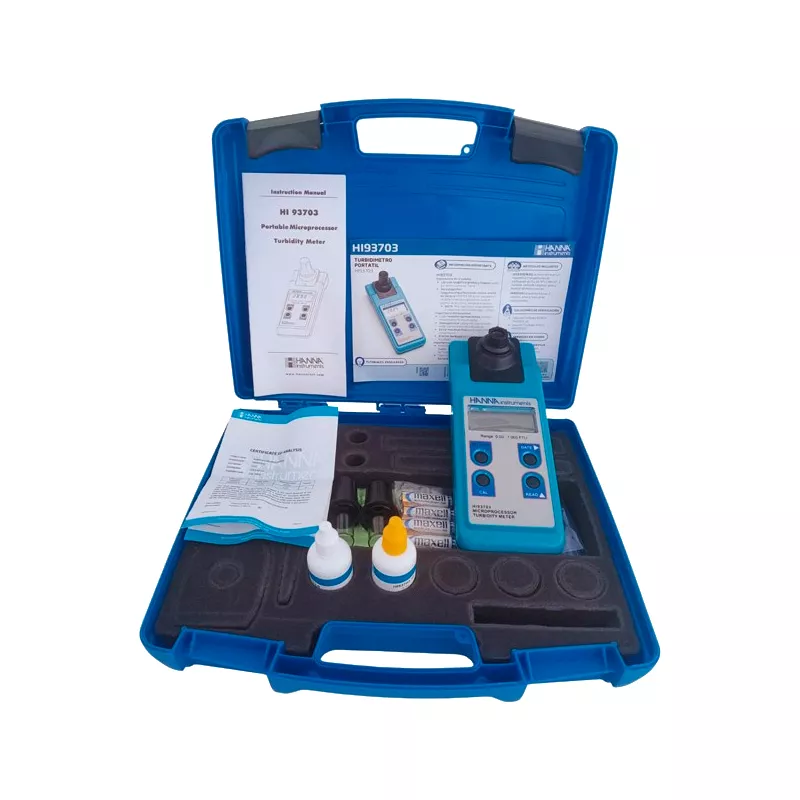

Included in the kit
- Turbidimeter
- 2 sample cuvettes and lids
- 0 NTU Calibration solution (30 ml)
- 10 NTU calibration solution (30 ml)
- Trough cleaning solution
- Bucket cleaning cloth
- Batteries
- Carrying case and instruction manual
Technical Parameters
| Range | 0.00 to 50.00 FTU;50 to 1000 FTU |
| Resolution | 0.01 FTU(0.00 to 50.00 FTU); 1 FTU (50 to 1000 FTU) |
| Accuracy | +- 0.5 FTU or +-5% Reading |
| Calibration | 3 Points (0FTU,10 FTU and 500 FTU) |
| Light | infrared LED |
Data Sheet
- Parameters
- 1 parameter
- Type of case
- Photometer
