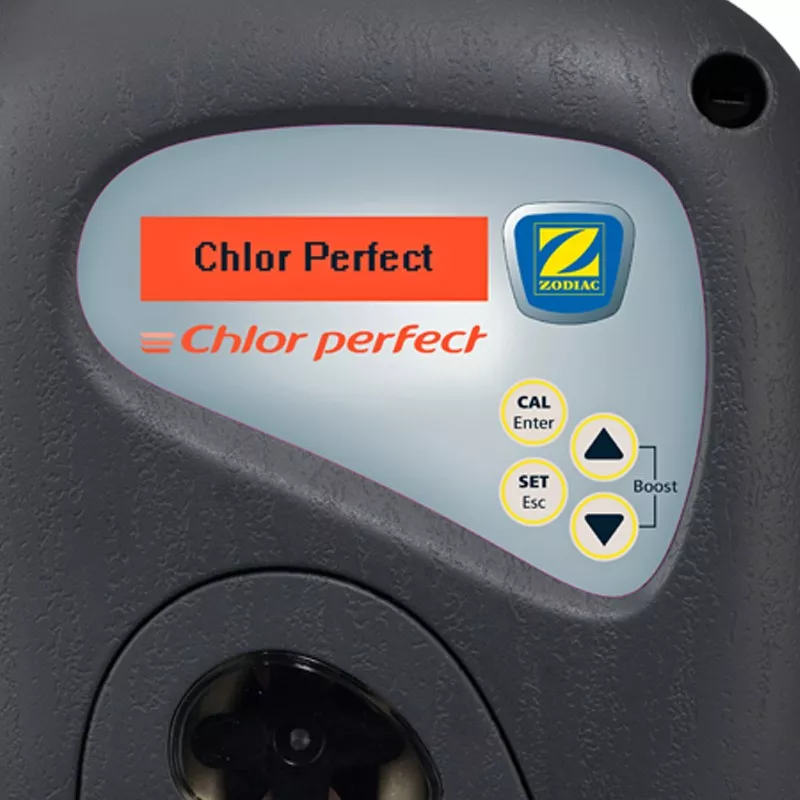

Chlorine regulator Zodiac model Chlor Perfect

Chlorine Regulator Zodiac Chlor Perfect

Chlor Perfect integrates proportional dosing technology in order to automatically maintain an ideal chlorine level for the comfort of bathers. The "Redox" method (measurement of the water's disinfection capacity) is used to automatically determine the chlorine level for the pool.

Thanks to a microprocessor, Chlor Perfect permanently optimises the disinfection capacity of the pool water by injecting liquid chlorine.

Chlor Perfect measures the water's oxidation-reduction potential (disinfectant capacity) by means of a REdox probe placed in the filtration system which constantly analyses the pool water.

Based on the average value, Chlor Perfect adjusts the chlorine level thanks to the peristaltic dosing pump.

The dosing time is adapted according to the deviation between the pool water's ORP value and the ideal value (set point). Automatic adjustment of the quantity of liquid chlorine to be injected according to the needs of each pool.

For the comfort of bathers, the ORP of the water should be around 740 mV, which is equivalent to approximately 1.5 mg/L of free chlorine and a pH of 7.4*.

For optimum water quality at all times, we recommend that you use it in conjunction with the pH Perfect pH regulator. The POD probe holder is the ideal choice for simpler installation and optimum precision.

* The ORP (active chlorine level) can vary depending on several parameters. The values to be respected are as follows:

- pH = 7.2 to 7.4

- TAC (alkalinity) = 8 to 15 °f (or 80 to 150 ppm CaCO3).

- Conductivity of the water (expressed in μS/cm)

- Water temperature = 20 to 28 °C.

It is important to check and adjust these water balance parameters in each case to ensure optimal functioning of the Redox regulation

Automated water disinfection:

• Redox regulation: automatic dosing of liquid chlorine according to the disinfectant capacity of the water.
• Automatic regulation by exclusive cyclical proportional dosing.
• For all types of in-ground pools and liners (private pools with rigid PVC pipes).
• Easy programming thanks to the LcD menu.
• Easy probe reliability control.
• Boost function (super-chlorination): Increased chlorine production in the event of an intensive swimming season or storms.

Technical characteristics of the Chlor Perfect:

• Power supply 50 Hz: 220-240 V AC
• Power consumption: 12 W
• Primary safety: 500 mA
• Theoretical maximum pump flow rate: 1.5 l/h
• Maximum pressure at injection point: 1.5 bar
• Collar for probe/injection support (not useful with POD probe holder accessory: for tubes Ø 50 or 63 mm)
• REdox control range: 0 - 1.000 mV
• Accuracy: +/- 0.1 pH
• Probe type: combined, single junction, Kcl, polymer gel and epoxy body Ø 12 mm
• Semi-automatic probe calibration: by buffer solution (1 point of 465 mV)
• Redox probe tolerance: 6 bar / 60ºC
• Protection rating: IP65
• Dimensions (L x W x H): 23,5 x 20 x 20 x 8,5 cm
• Weight with packaging: 1.7 kg
• Display: LCD screen - 1 line and 16 characters
• Pump: peristaltic 5 l/h
• Calibration: semi-automatic at 1 point (buffer solution included)
• Boost function (super-chlorination: manual activation)
• Set point: adjustable
• Safety: Chlorine dosing is automatic and optimised to avoid overdosing of corrective product. An overdosing safety feature warns when dosing exceeds the preset time, without waiting for the set point. The time is adjustable from 0 to 6 hours (4 hours by default)

Specific accessories:

• Suction cannula with level sensor (5 to 25 l)
• Redox measuring probe
• Buffer solution kit
• Collars for installation in DN50 mm pipe of injection point and probe
• Warranty: 2 years.
