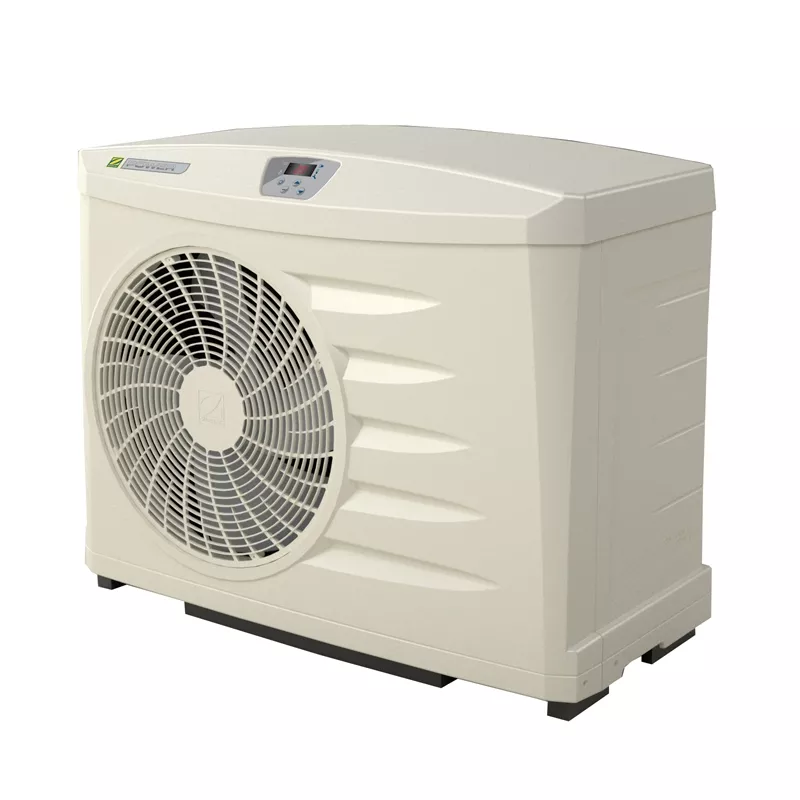

Bomba de calor Zodiac Power 7 mono

Heat pump Zodiac Power 7 mono

ref: 08BCW20ZPOWER7M ean13: 3478583000156
  • Heat pump Zodiac Power.
  • Power output: 9 KW
  • Type of current: single-phase.
  • Manufacturer: Zodiac.
  • Code: W20ZPOWER7M.
  • Compact and discreet.
  • Energy saving.
  • Power cable and connection fittings included.
  • Warranty: 2 years.
  • Corrosion capacitor warranty: 5 years.
Questions about this product?
Discuss it with us and ask us. Our technicians will solve your doubts.
Free shipping
Ask price
Free Shipping + info

Technical characteristics

ZODIAC POWER HEAT PUMP EQUIPMENT

  • Monobloc air/water heat pump with digital controller.
  • Anti-corrosion polypropylene casing.
  • Anti-corrosion titanium heat exchanger (condenser).
  • Automatic defrost by forced ventilation.
  • Rotary compressor.
  • Ecological refrigerant R410A.
  • Water flow switch.
  • H.P. and B.P. pressure switch safety.
  • Anti-freeze thermostat: operation up to +5ºC.
  • Supplied with: PVC fittings 1/2 40/50 unions. Power cable with direct plug included (except POWER 11M) and silentblocks.

Model Power 5 mono Power 7 mono Power 9 mono Power 11 mono
Maximum pool volume (m3) 0-30 20-45 30-60 40-70
Average water flow (m3/h) 3 4 5 5
Hydraulic connection

1/2 PVC fittings diameter 40 or 50 to be glued on
Power supply 230 V / 1 / 50 Hz
Rated current consumption (A) 4.45

7.09

 9.36 11.2
Maximum input current (A) 5.2 8.7 12.4 15.7
Power supply cable (mm2) Power cable supplied 3 x 2.5
Refrigerant quantity (g) 730 950 1.060 1.100
Sound pressure at 10 m (dB(A)) 38.2 39.1 40.6 43.7
28ºC Air temp Power input kW 6.1 9 12 14.1
Power input kW 1.1 1.9 2.5 3
COP 5.6 4.7 4.8 4.7
15ºC Air temp Power input kW 4.6 6.3 8.4 10.2
Power input kW 1 1.6 2.1 2.6
COP 4.5 4.0 4.0 4.0

Data Sheet

Type of current
Single-phase 220V
Brand
Zodiac
Power input (at 15ºC)
4 - 6 kw
Manufactured in
Titanium
