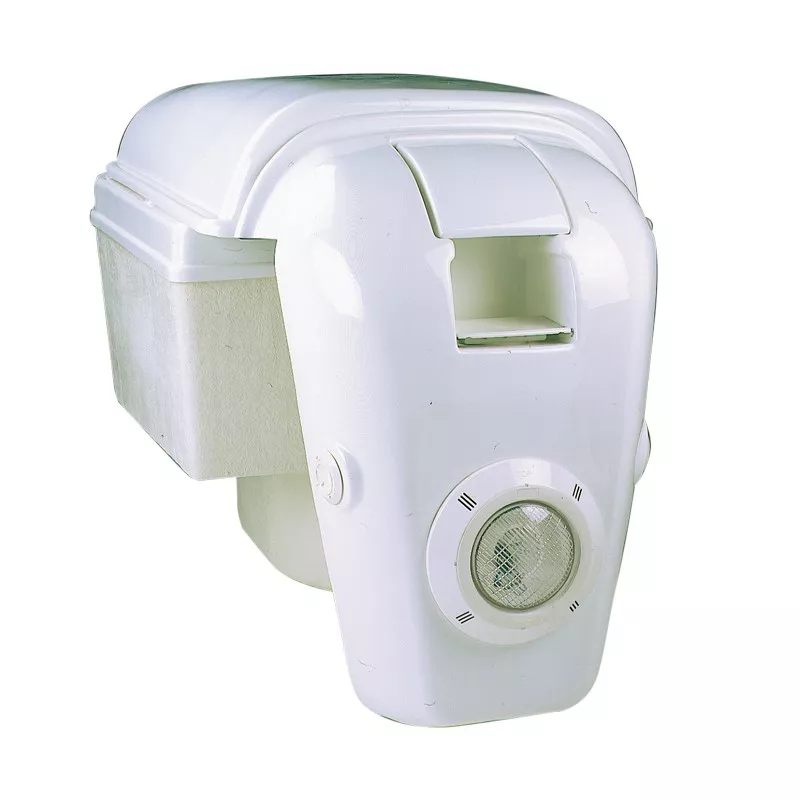

Mini-Combo backpack purification system with projector
ref: 06FI17291
- Compact filtration equipment Astralpool
- Cod. 22440
- Constructed in ABS and high quality acrylic
- Equipped with a 500 mm Ø filter with selector valve
- 3/4 HP filtering pump
- Control cabinet
- Equipped with drainage nozzle and drainage sump
- With 100 W 12 V floodlight with built-in transformer
- Adaptable to any pool with a wall thickness of 180 to 300 mm
Free shipping
Technical characteristics
The backpack system can perform four integrated functions in a single unit:
- Pool water filtration.
- Possibility of connecting a pool cleaner.
- Emptying the pool.
- Pool lighting.
Components of the Mini-Combo backpack pool cleaner with projector:
Manufactured in two independent bodies:
- A first body to be installed inside the pool, which includes skimmer system, impulsion nozzles, suction inlet for pool cleaner and 100 W 12 V projector with built-in transformer.
- A second body, which incorporates the 3/4 CV pump, a 500 diameter sand filter with selector valve, and the control cabinet.
- It also has a drainage nozzle and drain in the second body. This allows the equipment to be installed compactly or separately, and the filtration system can be placed where it is most convenient, in accordance with current regulations (maximum 3.5 m).
Advantages of the Mini-Combo backpack filter with projector.
The advantage of using a backpack unit is that the necessary installation is minimised. Only one power supply and two drains are required. The backpack filtration system complies with the UNE 20-460-93 standard.
