Decorative waterfall pool Powerfall 36
- Decorative waterfall Zodiac Powerfall 36".
- Manufacturer: Zodiac.
- Code: WB000010.
- Dimensions: 36" (91 x 15 cm).
- Unalterable: made of ABS.
- X-Baffle system: continuous water flow.
- Easy to integrate during construction.
- Aesthetic and qualitative enhancement of the pool.
- Installation with 1.5" pipe.
- Minimum recirculation rate: 1.9 l/min/cm.
Technical characteristics
what could be more relaxing than the murmur of a waterfall?
Water is a natural, odourless and colourless element that brings us incomparable benefits. Water also brings us total relaxation of body and mind, so why not take advantage of its therapeutic virtues?

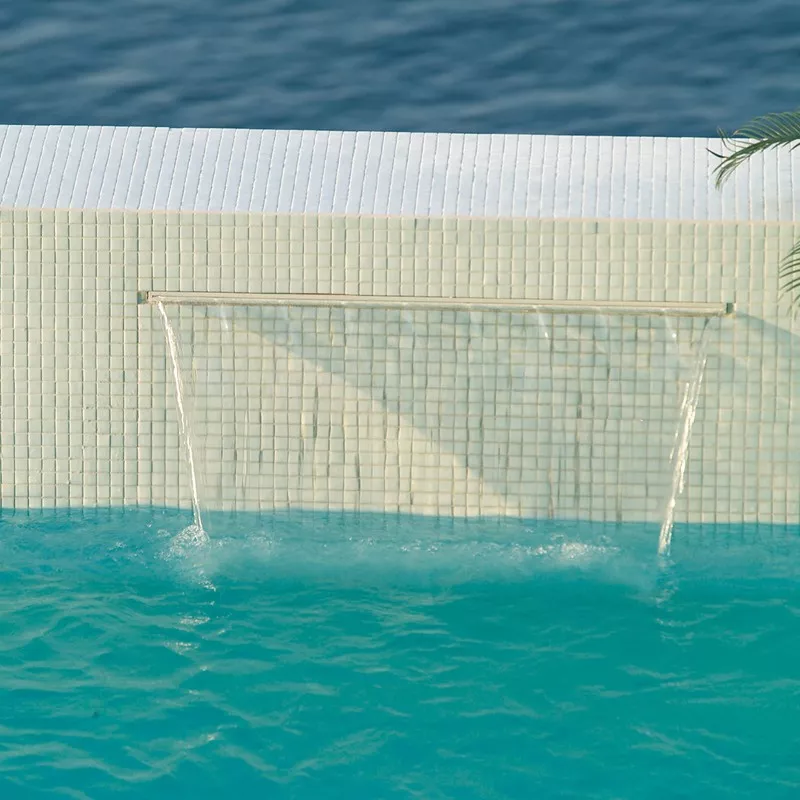

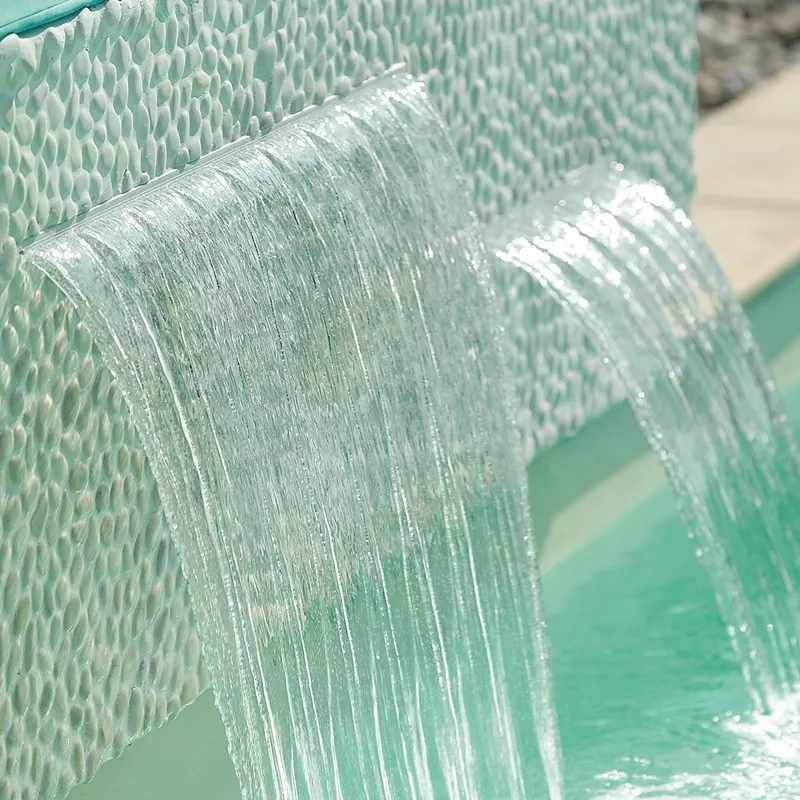

The Zodiac Powerfall waterfall enhances your pool, giving it added value, serenity and well-being.
Water animation with relaxing properties
The sheet of water is fed directly from the pool's filtration discharge circuit (provided it does not exceed 40%) and releases a harmonious and relaxing sound.
Features Zodiac Powerfall
- X-Baffle system: continuous water flow. Guarantees superior durability and uniformity of water flow.
- Dimensions: 36" (91 x 15 cm).
- Unbreakable: made of 100% translucent ABS plastic.
- Corrosion resistant.
- Easy to integrate during pool construction.
- Installation with 1.5" pipe.
- Minimum recirculation rate: 1.9 l/min/cm.
- Can be installed with the filtration pump as long as it does not exceed 40% of the circulation pump output. If it exceeds 40%, it will be necessary to use another specific pump for the cascade.
- The cascade must be installed at a maximum height of 1.20 m from the water level.
Installation
- Place a valve separate from each sheet of water. If the waterfalls are of the same size and the same height, make a loop to distribute the same flow to all the sheets.
- Preparation of the waterfall niche: for the Powerfall sheet, make a recess in the edge of the pool with a depth of 11 cm, and the width of the chosen waterfall +2.5 cm.
- Laying: make a mortar bed to reinforce the base of the waterfall. Fix the waterfall in place and level it.
Remember: the waterfall must be installed at a maximum height of 1.20 metres above the water level.
The pipe must be adapted to the flow:
3/h --> 50 mm
≥16m3/h--> 63 mm
EQUIVALENCE POWER/FLOW:
3/4 hp --> 13 m3/h
1 hp --> 16 m3/h
1,5 hp --> 22 m3/h
2 hp --> 30 m3/h
