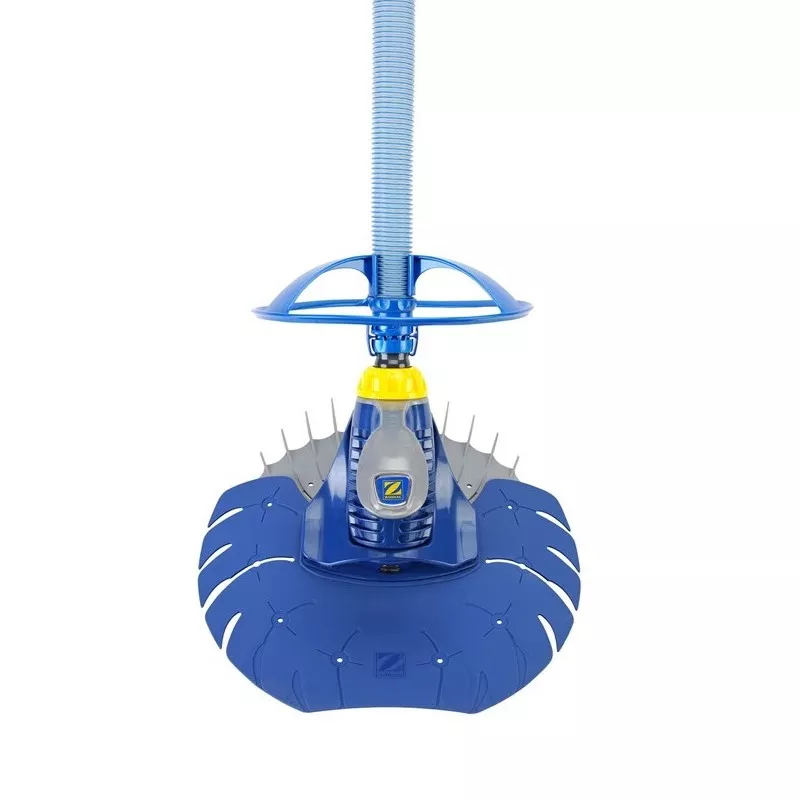

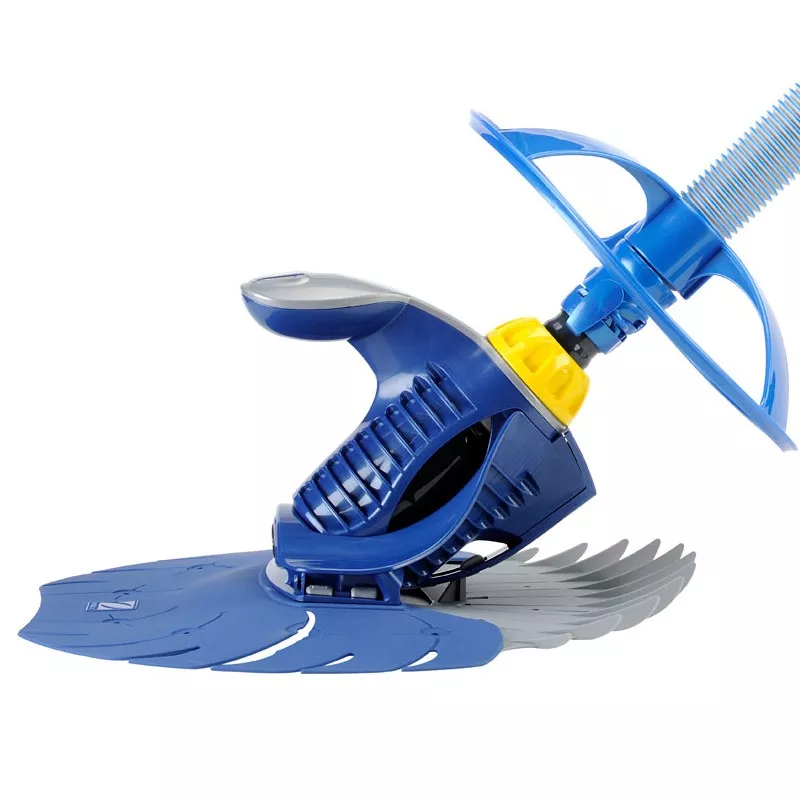

Automatic pool cleaner Zodiac T5 Duo

what type of pool is the T5 Duo Cleaner Zodiac suitable for?

• Type of pool: in-ground pools up to 12 x 6 m.
• Shapes: rectangular, oval, round and free-form.
• Surfaces: flat, gentle slope, compound slope.
• Coatings: gresite, liner, polyester shell, reinforced PVC, painted concrete.

Bottom cleaning equipment. Hydraulic equipment is not programmed in software to clean walls, although it can clean them on some occasions if a series of conditions are met.

Advantages Zodiac T5 Duo

• Dia Cyclone diaphragm: even more powerful suction (+40%).
• Duo Traction Control: two independent flexible discs for improved mobility and grip.
• New Twist Lock hoses: secure connection without loss of suction.
• Anti-blockage deflector to avoid stairs, angles, etc.
• Compact and resistant design.

Technical characteristics of the T5 Duo Cleaner Zodiac.

• Hose length: 12 sections of 1 m.
• Cleaner dimensions (L x W x H): 44 x 43 x 22 cm.
• Packaging dimensions (L x W x H): 99 x 45.5 x 29.5 cm.
• Weight of cleaner without packaging: 1.5 kg.
• Weight of cleaner with packaging: 8.4 kg.
• Filtering surface / Filtration capacity: Pool filtration circuit.
• Cleaning coverage: 44 cm.
• Minimum filtration pump power requirement: 3/4 hp.
• Displacement speed: 6 m/min.

General information about the Cleaner Zodiac T5 Duo.

• Installation: By the user on the cleaner intake or on the skimmer.
• Power source: Pool filtration equipment.
• Technology: Hydraulic by suction.
• Operating system: Dia Cyclone.
• Cleaning cycle: Recommended 6 hours filtration in 3 cycles of 2 hours.
• Displacement: Random.
• Type of waste vacuumed: Fine, medium and large.
• Possibility to bathe at the same time: Yes.
• Warranty: 3 years.
• Technology: DiaCyclone

Accessories supplied: Flexi Hose, Twist Lock hoses, automatic flow regulation valve, flow meter.

	T3	T5 DUO	MX8	MX9
For pools up to	9 x 5 metres	12 x 6 metres	12 x 6 metres	12 x 6 metres
Cleaning area	Bottom	Bottom and walls	Bottom and walls	Bottom and walls
Recommended cleaning cycle	6h in 2h cycles	6h in 2h cycles	6h in 2h cycles	6h in 2h cycles
Energy source	Swimming pool filtration equipment	Swimming pool filtration equipment	Swimming pool filtration equipment	Pool filtration equipment
Minimum filtration pump power	1/2 HP	3/4 HP	3/4 HP	3/4 HP
Displacement	Random	Random	Random	Random
Operating system	DiaCyclone Diaphragm	DiaCyclone diaphragm	Suction turbine and 2 suction propellers	Turbo suction: 2 suction propellers with brushes and powerful suction turbine
Installation	Cleaner inlet	Cleaner socket	Cleaner socket	Cleaner inlet
Type of debris	Fine and medium	Fine and medium	Fine and medium	Fine and medium
Hose length	10 x 1 metre lengths	12 x 1 metre lengths	12 lengths of 1 metre	12 lengths of 1 metre
Weight	1.2 kg	1.4 kg	3.2 kg	3.2 kg
Cleaning cover	30 cm	44 cm	36 cm	36 cm
Travel speed	6.5 m/min	6 m/min	8 m/min	8 m/min
Warranty	2 years	2 years	2 years	2 years
