7.5 HP centrifugal pump for swimming pools
ref: 05BO10957
- Centrifugal pump
- Power: 7.5 HP
- High flow rate in cast iron
- 2.850 r.p.m.
€2,294.99
IVA included
Free shipping
Technical characteristics

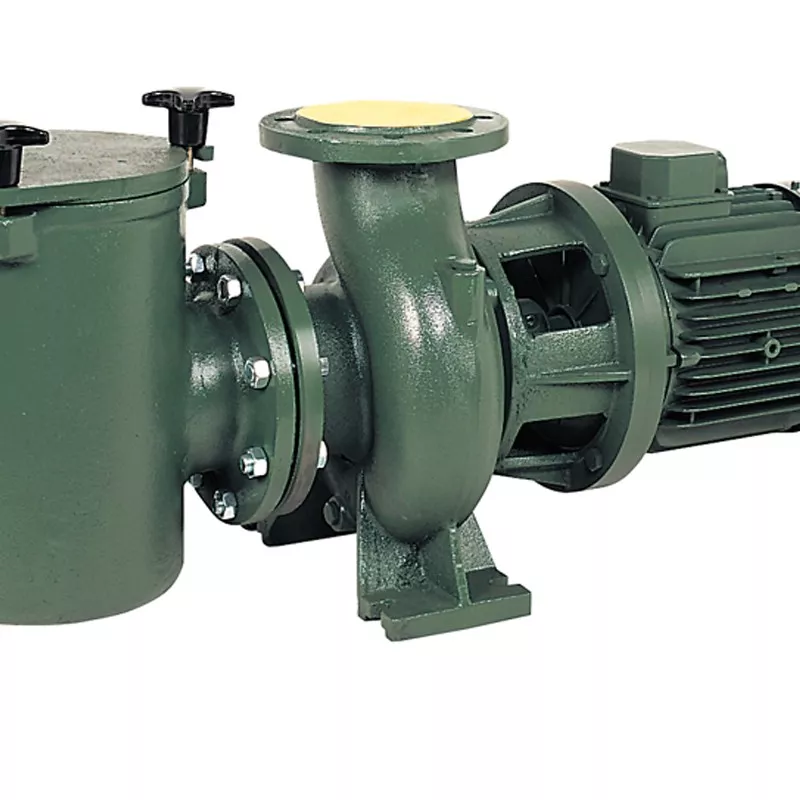

Centrifugal pump 7,5 HP
High flow centrifugal pump made of cast iron, with a pre-filter at the suction, which makes it the ideal pump for large filtration equipment.
Pump body, support, pre-filter, coupling and turbine in cast iron, pre-treated with epoxy-polyester paint and oven-dried to make it more resistant to oxidation.
- Stainless steel shaft and pre-filter basket.
- Mechanical seal in carbon-ceramic.
- Standard asynchronous motor, closed with external ventilation.
- Degree of protection IP-54.
- 2.850 rpm. 50 Hz.
- Inlet diameter: DN125*
- Discharge diameter: DN100.
Maintenance:
Maintenance of these pumps is easy and simple, as the construction of the pump, which incorporates a fully standardised motor, allows the motor to be changed or repaired without the need to empty the installation or dismantle any part of the hydraulic part of the pump, even if there are no shut-off valves at the inlet and outlet
- STANDARD VOLTAGE: UP TO 5,5 HP 220-380.
- VOLT. FROM 7.5 HP 380-660 VOLTS.
THE BRONZE VERSION IS QUOTED AND DELIVERY TIME IS GIVEN ON REQUEST.

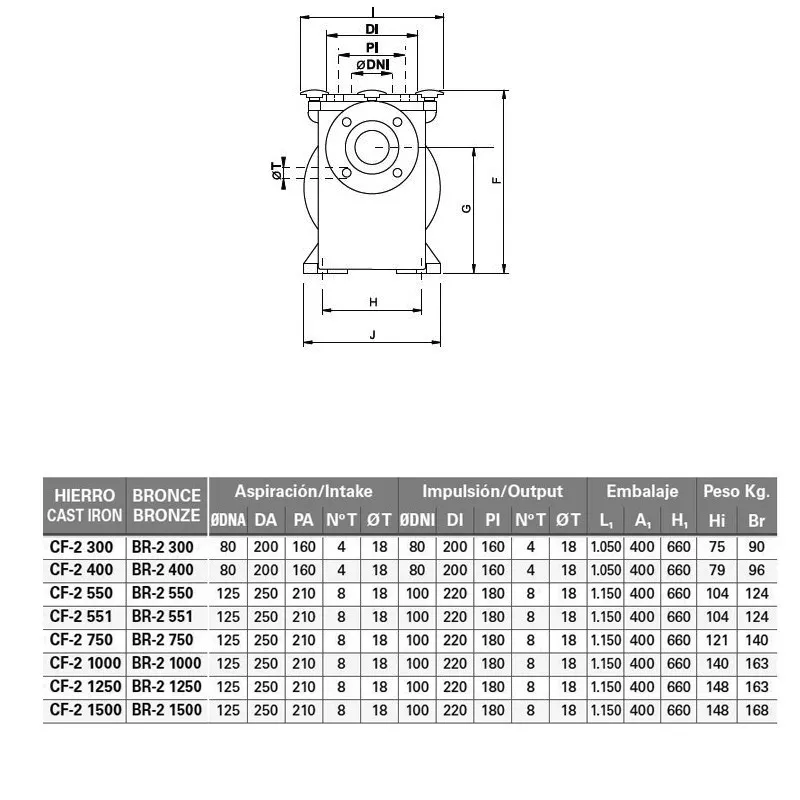

Data Sheet
- Variable Speed
- No
