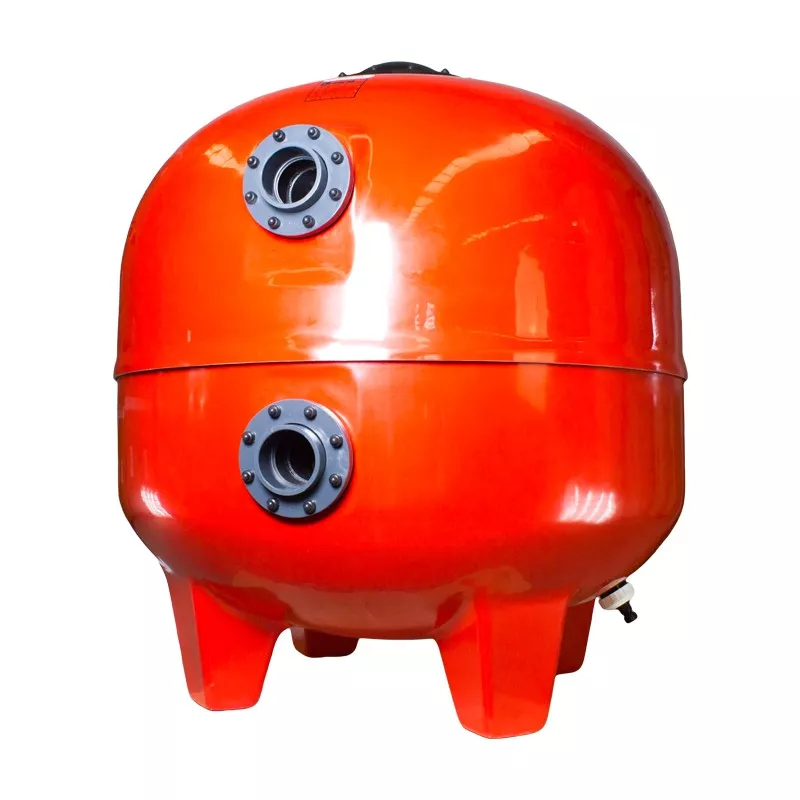

Industrial filter diameter 1.400
ref: 06FI01001412
ean13: 8410189003259
sku: 510003
- Dimensions 1.400 mm ø and 1.480 mm height
- Made of polyester resin and fibreglass.
- Lid in plastic material fixed with screws
- Internal filtration system by means of PVC collector arms
- Connections at 75mm (2 1/2")
- Load of silex sand 1200 Kg and 400 Kg of gravel NOT INCLUDED
- The battery of 5 butterfly valves and the pressure gauge panel should be included separately
Technical characteristics
Industrial filter
Laminated filter made of resin and fibreglass. Totally anti-corrosive, with PVC collectors and diffusers.
Characteristics Filter:
- 1,400 diameter filter.
- Filtration capacity: 30,000 litres/hour.
- Outlet: 2 ½" - 75 mm.
- Height: 1.480 mm.
- Kg. of flint sand: 1.200 (not included).
- Kg. of gravel: 400 (not included).
- Maximum temperature 50ºC.
- Maximum working pressure 2.5 Kg/cm2.
- FILTRATION SPEED: 20 M3/H/M2.
The battery of 5 butterfly valves and the pressure gauge panel would have to be included separately.
These filters can be supplied with speeds of 30, 40 and 50 m3/h/m2.
