Swimming pool overflow grating 22/195 mm. cable connection
- Traversal overflow grille
- Cod. 00212
- Manufacturer Astralpool
- Height 22 mm. width 195 mm
- Manufactured in UV stabilised polypropylene
- Cable connection of different parts
- 49 pieces per metre
Bought together Usually
Technical characteristics

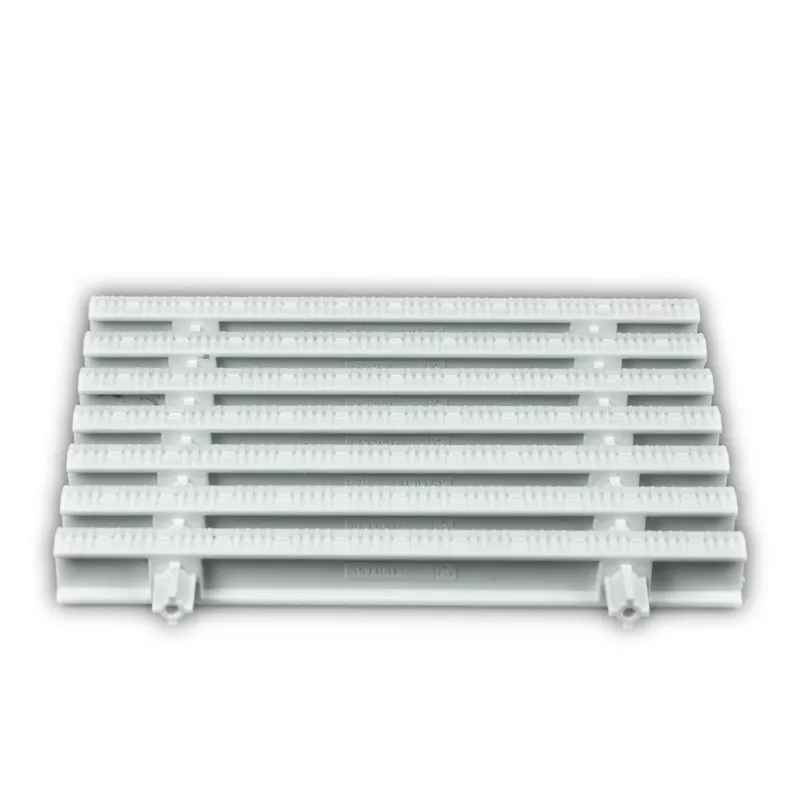

Grating Astralpool 00212

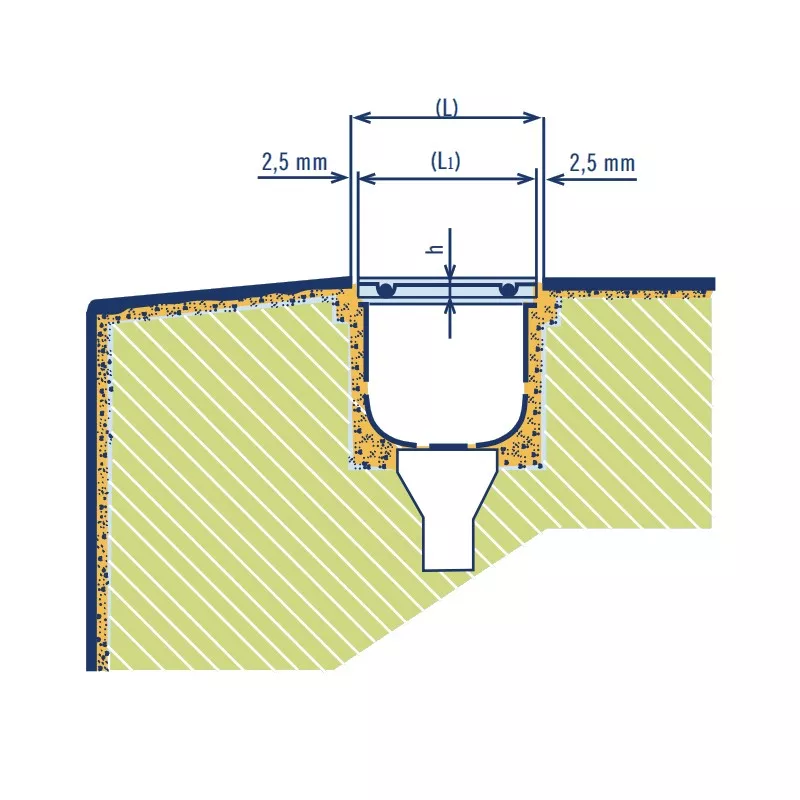

Transversal overflow grating made of UV stabilised PP (Polypropylene). White colour throughout the range. It is recommended to build the overflow channel 5mm wider than the grating so that it can be easily adapted and avoid possible dilatations.
how are the gratings joined together?
These gratings are joined together using plasticised AISI-316 stainless steel cable, Ø 2.5 mm.
Supplied without cable.
Plasticized AISI-316 stainless steel cable ref: 02RE00215
Cable clamp ref: 02RE00216
how do I know the quantity I need?
Each metre is made up of 49 pieces.
The measurements are: height 22 mm and width 195 mm.
Data Sheet
- High
- 22 mm
- Width
- 195 mm
- Colour
- White
- Type
- Grid
