Swimming pool filter Alaska 780
ref: 06FI01029004
ean13: 5410189037247
sku: 540007
- Alaska Series Pool Filter
- Manufacturer: Coral
- Code: 01029004
- Diameter: 780 mm
- Material: high resistance laminated polyester
- Includes 6-way selector valve 2"
- Includes pressure gauge, drain plug and ABS cap
€509.00
IVA included
Free shipping
Technical characteristics

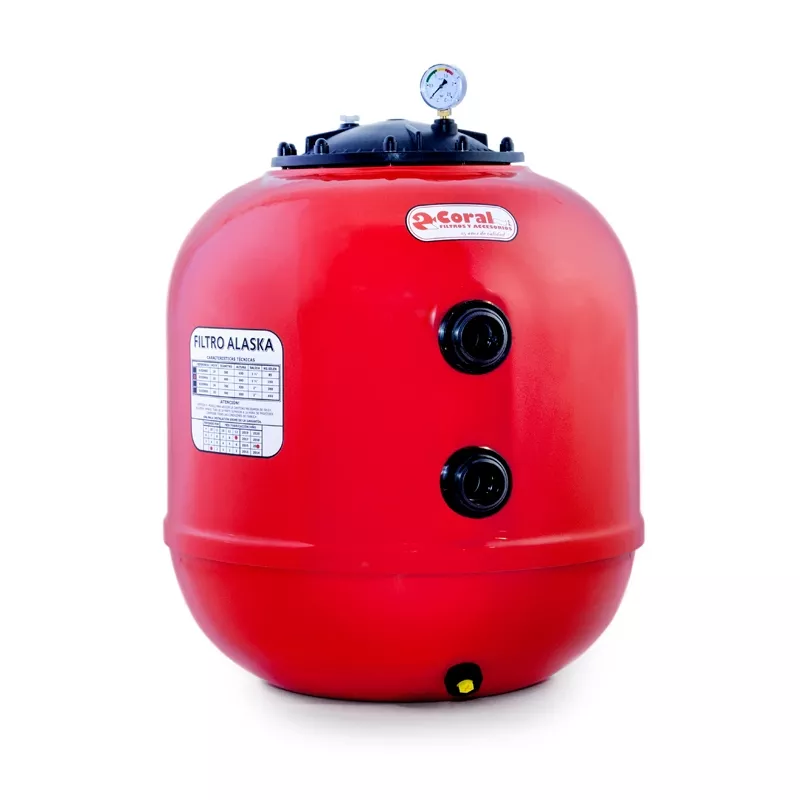

Swimming pool filter Coral Alaska 780
The Coral Alaska filter is a high resistance polyester laminated filter.

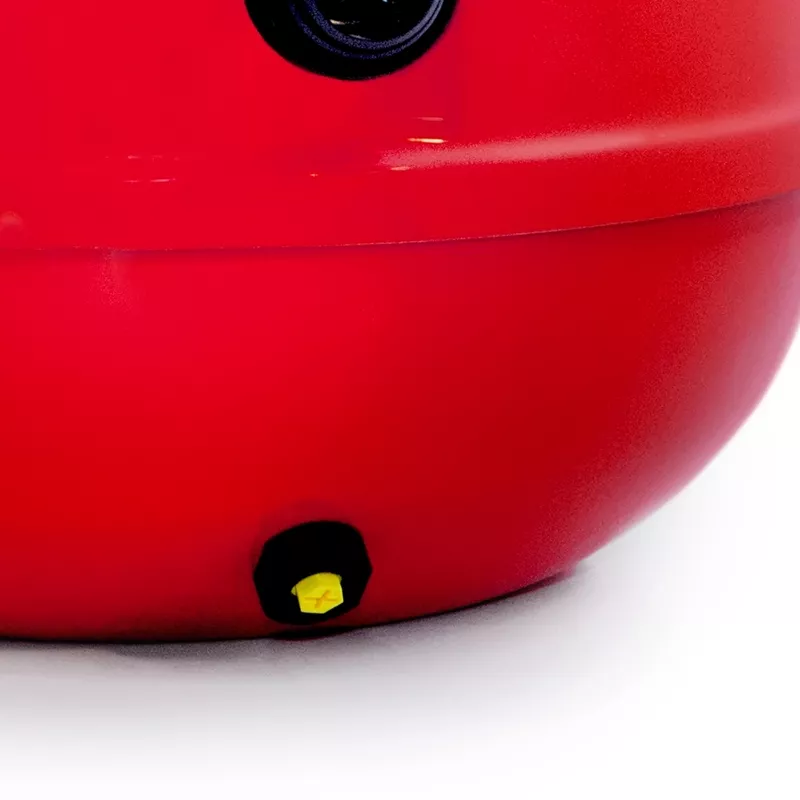

It includes all the elements for a correct functioning of the filtration system. It incorporates a pressure gauge on the upper part and a matt black ABS cover with screws. In the lower part it has a drain plug.
It is supplied with a 2" 6-way selector valve.
MAIN CHARACTERISTICS
- Diameter: 780 mm
- Filtration capacity: 24.000 l/h
- Filtration speed: 50 m3/h
- Maximum working pressure: 2,5 kg/cm2
- Sand load: 300 kg
- Glass load: 240 kg
- Crepinas: 16 units of 140 and 200 mm (8 of each)
Top cover with screws

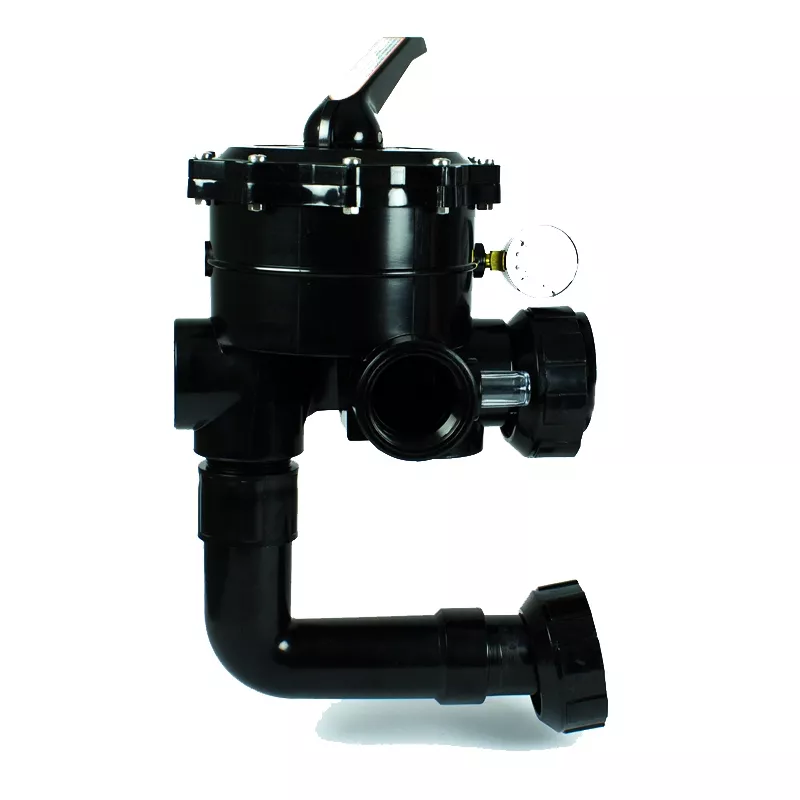

6-way 2" selector valve

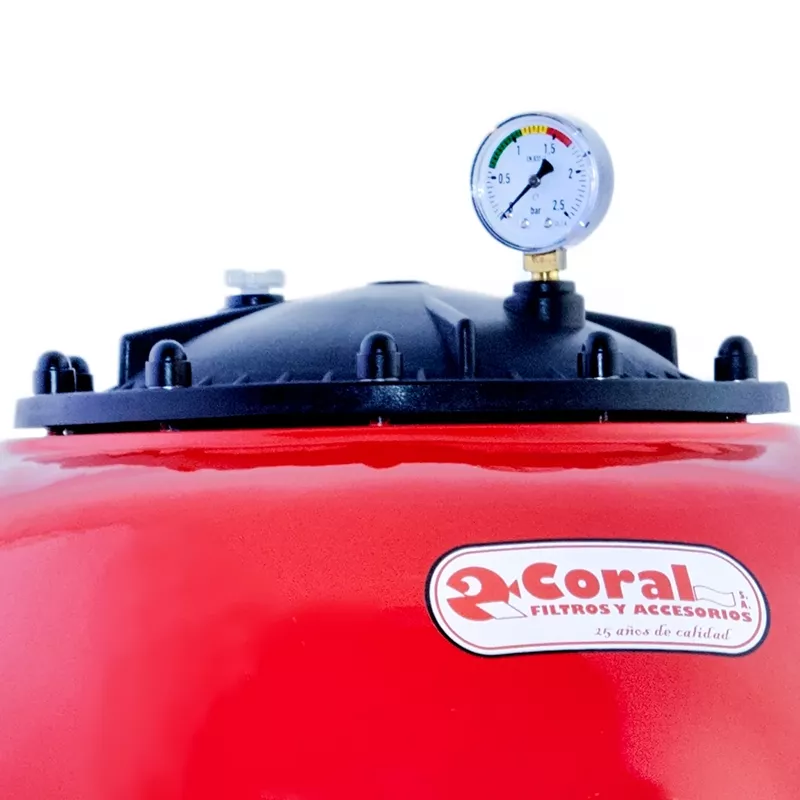

Pressure gauge
Product manufactured at España
what is leakage?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming.
Commissioning
Once the sand filter has been filled (see manual), proceed as follows:
1. Open the valves on the suction pipes leading to the pool (skimmer and drain).
2. Turn the selector valve to the RINSE position.
3. Switch on the pump for 5 minutes.
4. Stop the pump and switch the selector valve to the RINSE position.
5. Reconnect the pump for 1 minute.
6. Stop the pump and switch the selector valve to the FILTRATION position.
The filter is now ready for operation.
Functions of the selector valve
 |
|
|
|
|
| ALASKA 500 | ALASKA 600 | ALASKA 780 | ALASKA 900 | |
| Diameter (mm) | 500 | 600 | 780 | 900 |

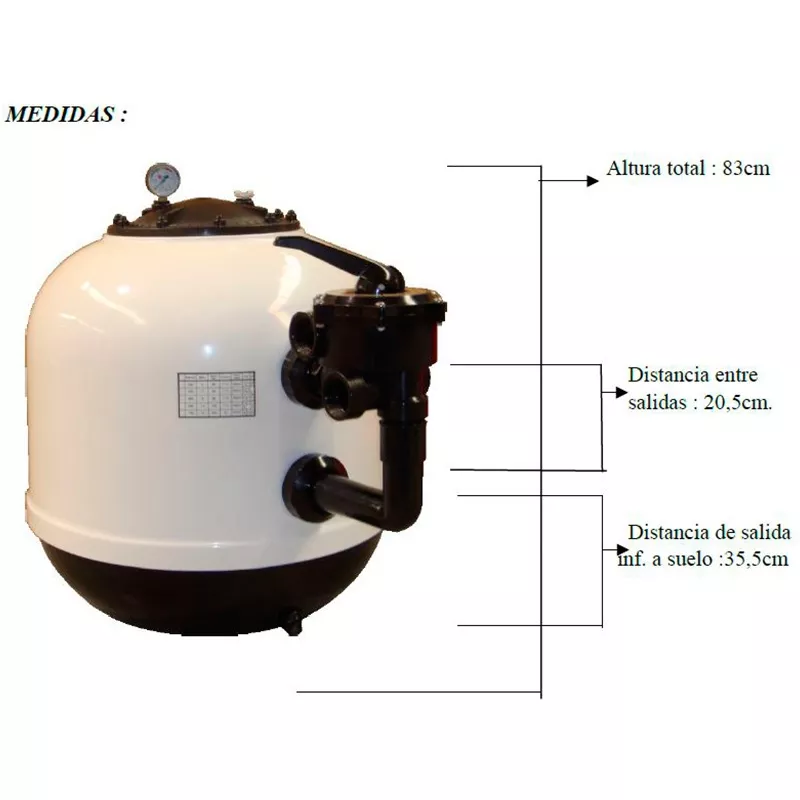

| Height (mm) | 630 | 690 | 830 | 950 |
| Connections | 1" 1/2 | 1" 1/2 | 2" | 2" |
| Flow rate (m3/h) | 10 | 15 | 24 | 32 |
| Sand load (kg) | 85 | 150 | 300 | 450 |
| Filtration area (m2) | 0,20 | 0,28 | 0,48 | 0,64 |
| GUARANTEE | 2 years | 2 years | 2 years | 2 years |
Data Sheet
- Recommended pool size
- 80-150 m3
- Filter diameter
- 780 mm
- For pumps
- 1 HP - 1.5 HP
- Valve
- Side 2
- Sand load (kg)
- 250 - 300 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
