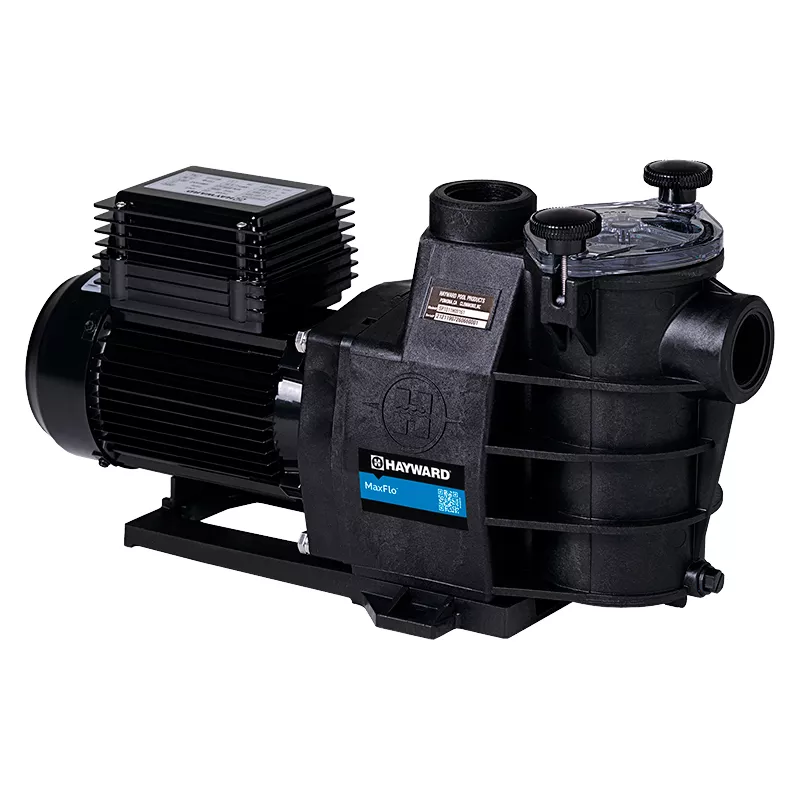

Swimming pool pump Hayward MaxFlo 0.75 hp single phase

Swimming pool pump Hayward MaxFlo 0,75 HP single phase | SP1808HW111

The ultimate solution for small technical rooms

Finding a filtration pump that combines industrial strength with a small footprint is often a challenge for many pool owners. The Hayward MaxFlo presents itself as the ideal solution to this problem, offering excellent value for money and a design specifically designed to fit into limited spaces without sacrificing performance. Whether for renovation or new construction, this pump guarantees crystal clear water circulation with the legendary reliability of Hayward.
.

Technical and functional features of the Hayward MaxFlo pump

• State-of-the-art material engineering: The pump body, turbine and diffuser are injected in PermaGlass XL (PP+GF), a high-tech composite material offering exceptional resistance to chemical and salt corrosion.
• Noryl turbine: Equipped with a turbine in Noryl®, an engineering polymer known for its hydrolytic stability and resistance, ensuring a constant and long-lasting water flow.
• Mechanical seal for salt treatment: Incorporates an AISI 304S mechanical seal, making it fully compatible with salt electrolysis treatments, preventing premature corrosion common in standard pumps.
• Optimized pre-filter basket: Features a 1 liter capacity pre-filter basket designed to trap leaves and large debris, protecting the hydraulic system and reducing cleaning frequency.
• Total visibility: The pre-filter lid is transparent and made of Lexan, allowing immediate visual inspection of the level of dirt in the basket without tools.
• High efficiency European motor: 2-pole asynchronous motor (2900 rpm), insulation class F and IPX55 protection, designed to work in humid environments and withstand high internal temperatures.
• Integrated thermal protection: In the single-phase versions, the motor includes a thermal protection that automatically cuts the circuit in case of overheating, restarting itself when the temperature drops.
• Self-priming: Efficient suction and priming capability, allowing the pump to operate correctly even if installed slightly above the water level (respecting performance curves).

• Double drain plugs: Strategically placed drain plugs to facilitate complete draining of the pump body and prevent freeze damage during winter.
• Universal connectivity: Delivered with 1.5" female thread connections and, as an added value, includes 50 mm glue-on fittings for easy adaptation to piping.
• Low sound level: Designed to operate with a sound pressure of less than 70 dBA, minimizing hearing discomfort during the filtration cycle.
• Operating temperature: Suitable for continuous operation with water temperature up to 35°C, covering the normal conditions of any residential pool.
• Self-lubricating bearings: The motor shaft is mounted on sealed, self-lubricating bearings that require no subsequent maintenance or greasing.
• IE2 Certification: The motors comply with IE2 energy efficiency standards, ensuring optimized electrical consumption.
• Ease of service: Design allows easy access to internal components (such as the mechanical seal or turbine) by unscrewing the motor body fixing screws.
• Direct replacement: The Hayward MaxFlo allows for adrop-in replacement of the Hayward Powerline Plus II and the Hayward Starpump II

Frequently Asked Questions (FAQ's): Hayward MaxFlo Pump

is the Hayward MaxFlo pump compatible with salt pools?

Yes, the MaxFlo pump is fully compatible with salt chlorination systems. It has a mechanical seal made of AISI 304S stainless steel, specifically designed to resist saltwater corrosion.

what maintenance does the pump require?

Maintenance is minimal. Mainly, you should regularly clean the pre-filter basket when it is full of debris. The motor bearings are self-lubricating and do not require greasing. It is recommended that the cover gasket and mechanical seal be checked periodically for leaks.

where should I install the pump in relation to the pool?

The pump should be installed in a dry and well ventilated place. According to the installation regulations in force (NF C 15-100), a minimum safety distance of 3.5 meters must be respected between the pump and the pool.

does the pump come with an electric cable?

Generally, pumps are supplied without a final external power cable so that the installer can adapt it to the required distance. It must be connected with a flexible cable type H07RN-F of suitable section (3G1,5mm² for single phase) and always with ground connection.

how do I protect the pump in winter?

For hibernation, the pump must be completely drained by removing the drain plugs located on the lower part of the body. It is recommended to keep the plugs in the pre-filter basket and, if possible, to store the pump in a dry and ventilated place.
