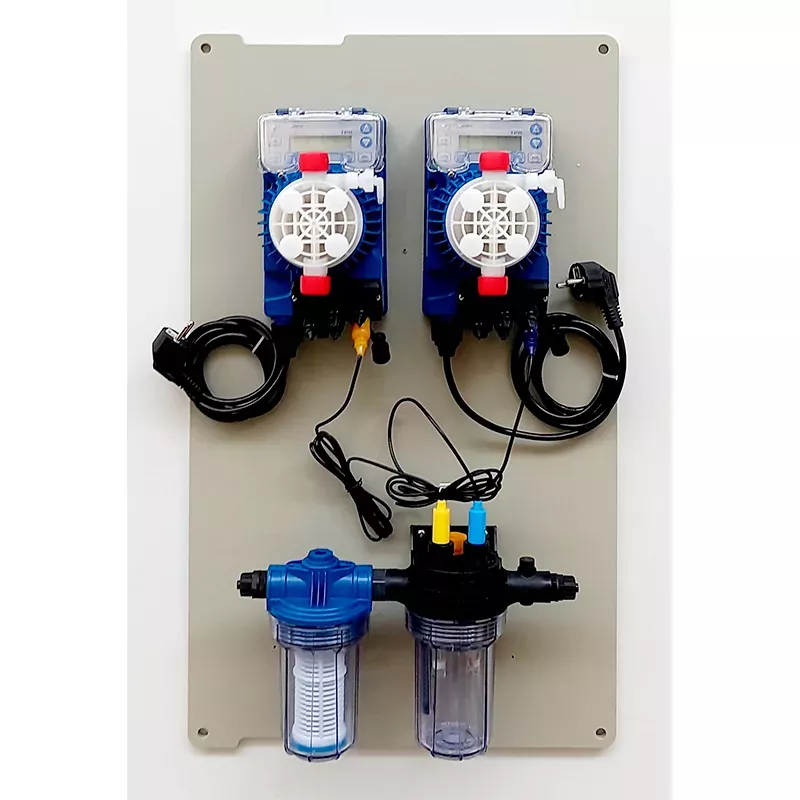

Dosing and control panel Seko Tekna TPR 603 pH-Redox

Control and dosing panel Seko Tekna TPR 603 pH-Redox

• Dosing pumps with built-in pH and ORP control:
  - Seko Tekna TPR 603 of 6 l/h and 8 bar (2 units)
• Measuring ranges:
  - pH: from 0 to 14
  - ORP: from 0 to 1500 mV
• Self-calibration of all measurements
• Alarm signal for lack of water flow
• IP65 protection
• 4-20 mA analog outputs for signal repetition
• Power supply: 230 V - 50/60 Hz
• Programmable set points and alarms
• PH and ORP probes included
• Temperature reading and compensation (temperature probe not included)
• Two types of regulation:
  - on/off
  - time regulation

Elements included:

• Dosing pump Seko Tekna TPR 603 (2 pcs.)
• PH probe
• ORP probe
• Methacrylate probe holder for 3 probes (pH, Rx and Tª)
• Filter holder and 80-micron Nylon filter cartridge for water inlet
• Calibration solutions: pH4, pH7 and 465 mV
• Mounting accessories
• Instruction manual
