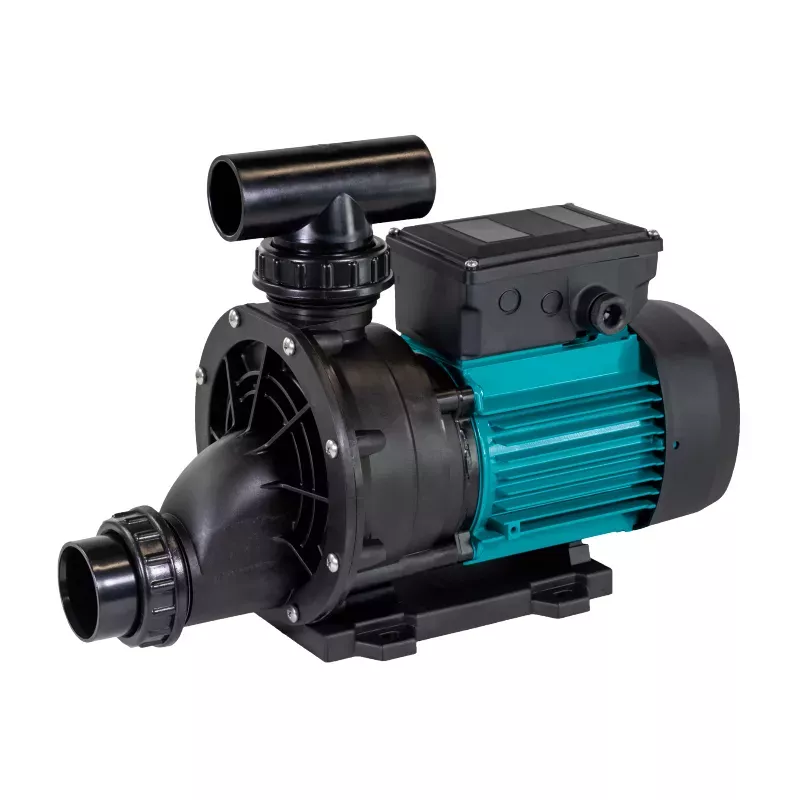

ESPA TIPER2 125 pump Hydromassage and spa pump
ref: 05BO137548
ean13: 8431857411305
sku: 137548
- Single-stage centrifugal pump for water recirculation
- Manufacturer: ESPA
- Code: 137548
- Power 1,2 HP
- Central suction
- Ideal for recirculation of water in whirlpool, spa and removable pools
- Single-phase versions with built-in thermal protector
- Motor shaft in stainless steel AISI 431
€310.00
IVA included
Free shipping
Technical characteristics
Pump Espa Tiper 2 125 M
1,2 HP SINGLE-PHASE pump. Ideal for water recirculation in spas, whirlpools and removable pools.
Equipment
- Without cable
- Unions included, suction 50 mm and discharge 40 mm x2
- Purge plug: No
- Check valve: No
Electrical characteristics
- Electrical insulation: Class F
- Service factor: S1
- Degree of protection: IPX5
- Reset: Automatic
- Motor type: Asynchronous
- Motor rotation type: Constant speed
- Type of service: Continuous
Constructive characteristics
- Intake diameter: D50
- Discharge diameter: D40
- Sealing by means of: Mechanical seal
- Stages: Single-stage centrifugal pump
- Motor cooling: Fan
- Suction connection type: Push-in fitting
- Type of connection at discharge: Push-in fitting
Materials
- Mechanical seal: Alumina-Graphite
- Suction body: Technopolymer
- Discharge body: Technopolymer
- Pump shaft: AISI 431
- Motor shaft: Stainless steel AISI 431
- Motor casing: Aluminum
- Impeller(s): Technopolymer
- Seals: NBR/EPDM
- Screws: Stainless steel AISI 304
Operating limits
- Liquid temperature (ºC):Max: 50
| Tiper 70 | Tiper 90 | Tiper 2 125 | |
| Electrical data | |||
| Type of current | Single-phase | Single-phase | Single-phase |
| Current | 2,8 | 3,8 | 6,3 |
| Power absorbed | 0.7 KW | 0.9 KW | 1.3 KW |
| Motor power | 0,37 KW / 0,5 HP | 0,75 KW / 1 HP | 0.9 KW / 1.2 HP |
| Capacitor capacity | 12 µF - 450 V | 12 µF - 450 V | 12 µF - 450 V |
| Tiper 2 125 | |
| Hydraulic data | |
| Flow rate (m3/h) | Head (m) |
| 25,3 | 2,0 |
| 24,9 | 2,5 |
| 21,8 | 4,9 |
| 18,0 | 7,5 |
| 13,2 | 10,0 |
| 7,3 | 12,5 |
| 0,0 | 14,7 |
