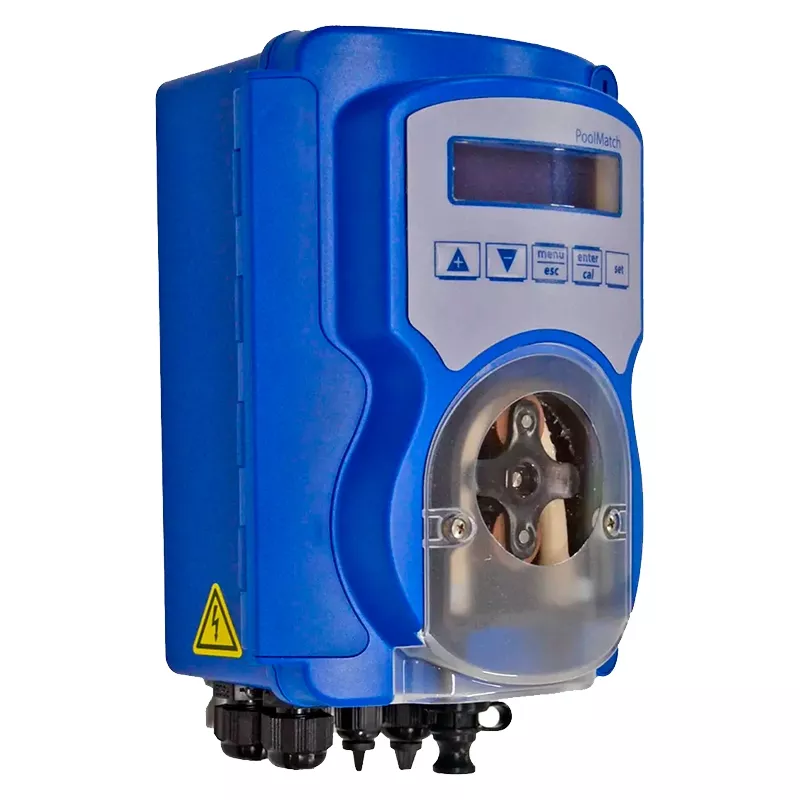

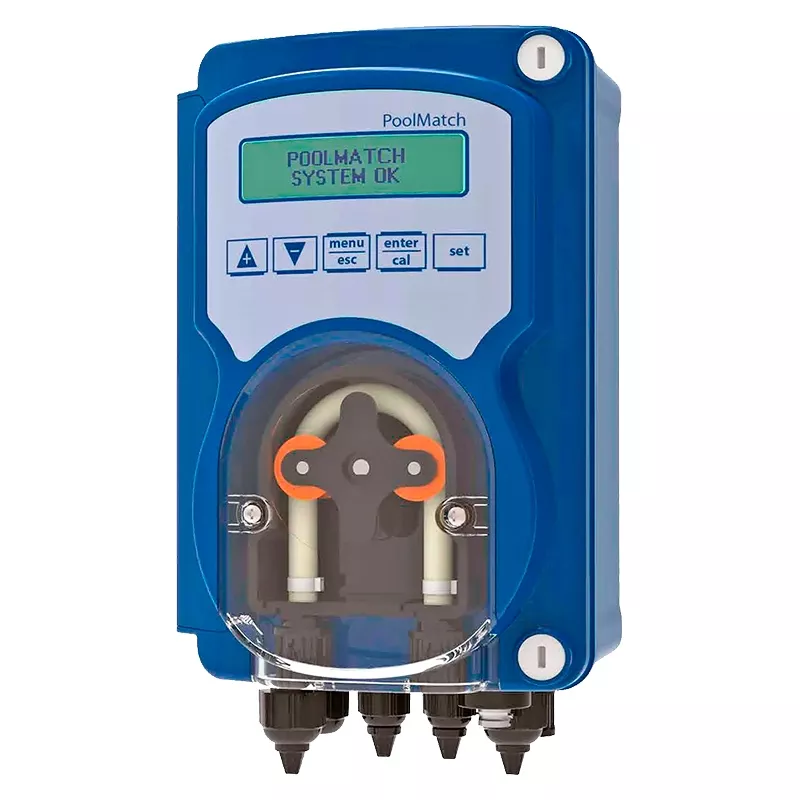

Metering pump Seko PoolMatch pH 1.5 l/h with Modbus
ref: 05BDSPHPMSPA1S00
sku: SPHPMSPA1S00
- Peristaltic pH Dosing Pump
- Manufacturer: Seko
- Code: SPHPMSPA1S00
- Flow rate of 1,5 l/h at 1,5 bar
- Proportional dosing mode to achieve the setpoint value
- Allows communication with Modbus protocol
- IP65 protection
- Backlit display
- Included:
- pH electrode
- probe holder
- 2 collars
- connection cable
- buffer solutions
- installation kit
€309.00
IVA included
Free shipping
Technical characteristics
PH peristaltic pump Seko PoolMatch with Modbus
A peristaltic pump is a type of hydraulic pump used to pump a variety of fluids. The fluid is contained within a flexible tube inside a circular pump casing. A rotor with a number of rollers, shoes or wipers attached to the outer circumference compresses the tube. As the rotor turns, the part of the tube under compression closes forcing the pumped fluid to move through the tube. In addition as the tube is re-opened flow is induced into the pump, this process is known as peristalsis.
The pH is the parameter that measures the acidity or alkalinity of water. Alkaline water is water with a pH higher than 7.6 and acidic water is water with a pH lower than 7.2, the recommended values being between 7.2 and 7.6. Higher or lower values can reduce the effectiveness of chemical treatments.
- Flow rate 1,5 l/h at 1,5 bar
- Manufacturer: Seko
- Code: SPHPMSPA1S00
- Proportional dosing mode to achieve the setpoint value
- Allows communication with Modbus protocol
- IP65 protection
- Backlit display
- Including:
- pH electrode
- probe holder
- 2 collars
- connection cable
- buffer solutions
- installation kit - Equipment warranty: 3 years
Incorrect placement of the pH probe will invalidate the warranty. The probe is a consumable not covered by the warranty, so it will be up to the manufacturer to determine in each case whether or not the warranty is applicable.
Data Sheet
- Pump type
- Peristaltic
- Allows level control
- Yes
- Pump control
- Digital
- Automatic control of
- pH
