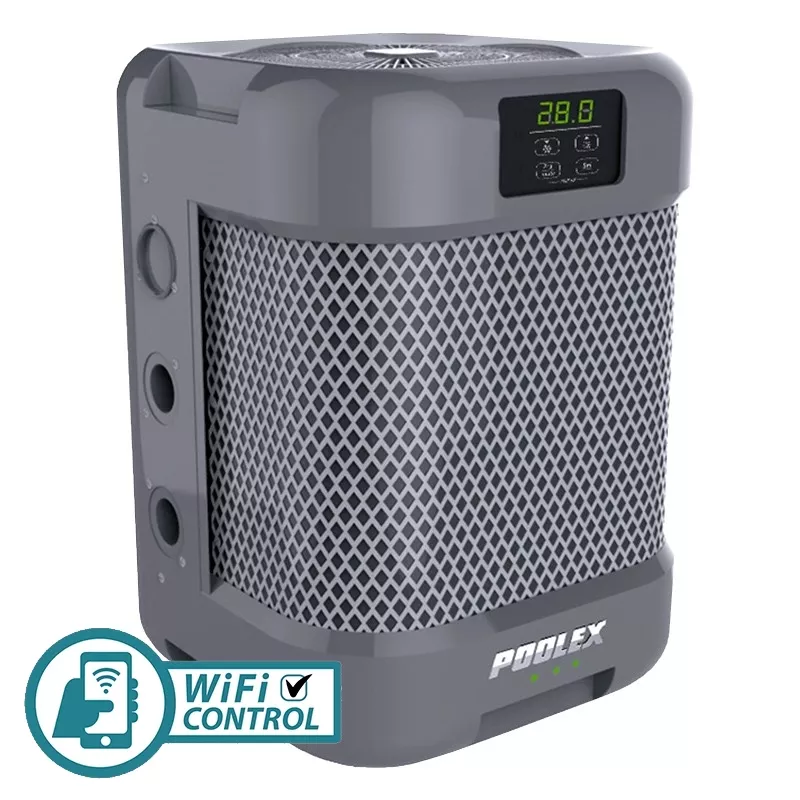

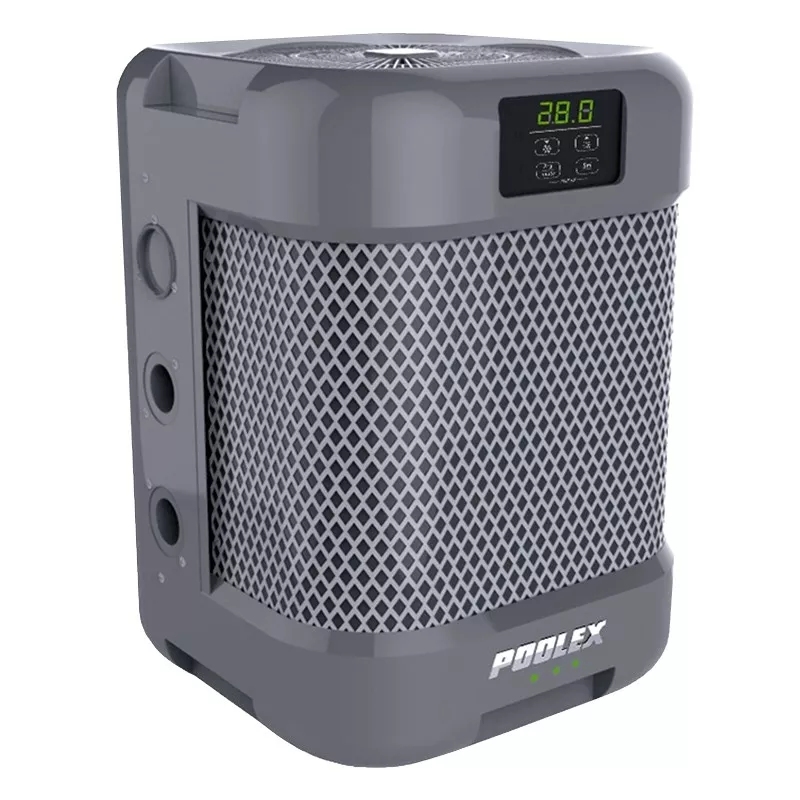

Heat pump Poolex Q-Line 9 Full Inverter
ref: 05BCPCQBC090
ean13: 3700691416827
sku: PC-QBC090
- Q-Line 9 Full Inverter Heat Pump
- Manufacturer: PC-QBC090 Poolex
- Code: PC-QBC090
- Power: 7,01 KW (standard 15-26)
- Power: 9.01 KW (26-26 standard)
- Integrated WiFi
- R32 refrigerant fluid
- Toshiba multi-frequency compressor
- Twisted Tech titanium heat exchanger
- Efficient and silent
- Ideal for pools between 40 and 50 m3
- Winter cover included
Free shipping
Bought together Usually
Actual product
|
€799.00 |
Items:
1
Total price:
Technical characteristics
Heat pump Poolex Q-Line 9 Full Inverter
Poolex Q-Line: At the service of the majority of users.
In order to offer a product that is easy to install and use, Poolex has created a heat pump dedicated to pools from 20 to 50m3, concentrating the best in terms of technology, ergonomics, design and performance.
The Full Inverter technology found in most heat pumps Poolex allows a reduction in consumption of 30 to 35% in one year, thanks in particular to a variable frequency compressor and fan.
Vertical air discharge, which saves a lot of space and facilitates the choice of the installation area.
The unit can be controlled from your smartphone thanks to its integrated WiFi module.
The LEDs on the front panel are colour-coded to indicate whether or not the set temperature has been reached.
Vertical ventilation
The vertical blower has a significant space saving due not only to the floor dimension of the heat pump, but also to the free area around it, which is reduced by half.
It is also a gain in terms of noise, because most of the sound pressure is dissipated in the blower shaft.
Integrated WIFI connection
Control the heat pump via your smartphone, with real-time indications.
Full Inverter mode: +35% savings
When the pump starts up, unlike a traditional pump, the compressor starts up gradually.
An automatic regulator increases the capacity of the heat pump for a rapid temperature increase when the setpoint temperature is far from the pool temperature.
During the season, and to maintain the set temperature, the heat pump runs at reduced power.
This continuous regime means that the Full Inverter heat pump operates more stably, which preserves the compressor by avoiding unwanted starts and stops, resulting in energy savings of more than 35%
LED display technology
The integrated LEDs on the front of the heat pump give it a colourful style while providing the most useful technical functionality: instant display of the pump's operating status.
Green: the set temperature has been reached.
Blue: the pool is heating up.
Red: Pump is not running.
Included accessories
Isothermal winter cover
Set of anti-vibration mounts
Condensate drain pipe
Instruction manual in several languages
Guarantee
- Heat pump: 2 years.
- Compressor: 5 years.
- Titanium spiral: 15 years against corrosion.
 |
|
|
||
| Q-LINE 5 | Q-LINE 7 | Q-LINE 9 | ||
Air 26ºC Water 26ºC Humidity 80% |
Max. rated power (kW) | 5,50 | 7,01 | 9,01 |
| Min. rated power (kW) | 1,12 | 1,35 | 1,82 | |
| Power consumption (kW) | 0,86 - 0,089 | 1,09 - 0,105 | 1,43 - 0,146 | |
| COR | 12,58 - 6,40 | 12,86 - 6,43 | 12,47 - 6,30 | |
Air 15 ºC Water 26 ºC Humidity 70% |
Max. rated power (kW) | 4,15 | 5,01 | 7,01 |
| Min. rated power (kW) | 0,85 | 1,02 | 1,37 | |
| Power consumption (kW) | 0,92 - 0,132 | 1,11 - 0,145 | 1,57 - 0,217 | |
| COR | 6,44 - 4,51 | 7,03 - 4,51 | 6,31 - 4,46 | |
| POWER SUPPLY | Single 230V / 50 Hz | Mono 230V / 50 Hz | Single 230V / 50 Hz | |
| HEATING TEMPERATURE RANGE | 15ºC / 40ºC | 15ºC / 40ºC | 15ºC / 40ºC | |
| OPERATING RANGE | -10ºC / 43ºC | -10 ºC / 43ºC | -10ºC / 43ºC | |
| MAX. POWER (kW) | 1,2 | 1,6 | 2 | |
| FLOW RATE (m3/h) | 1,8 | 2,2 | 3,2 | |
| REFRIGERANT | R32 | R32 | R32 | |
| NOISE AT 1m. (dB(A)) | ||||
| NOISE AT 10m. (dB(A)) | ||||
| COMPRESSOR TYPE | Rotary | Rotary | Rotary | |
| COMPRESSOR BRAND | Toshiba | Toshiba | Toshiba | |
| HEAT EXCHANGER | Twisted Tech Titane - 32 mm | Twisted Tech Titane - 32 mm | Twisted Tech Titane - 32 mm | |
| FUNCTION | Heating / Cooling (full inverter) | Heating / Cooling (full inverter) | Heating / Cooling (full inverter) | |
