Automatic pH, ORP and Temperature Control Hanna BL122-10 with Hanna Cloud
ref: 01EQBL122-10
sku: BL122-10
- Automatic pH, ORP and temperature control with peristaltic pump (3.5 litres/hour).
- Manufacturer: Hanna.
- Code: BL122-10.
- Supplied with combined pH, Redox and Temperature electrode.
- A single probe for three parameters.
- Remote connection and access to Hanna Cloud.
€1,995.00
IVA included
Free shipping
Technical characteristics
Automatic pH, ORP and Temperature Control Hanna BL122-10 with Hanna Cloud
The BL122 controller is designed to maintain constant pH and sanitiser levels in pools, hot tubs and spas and offers the added benefit of allowing remote connection and access to devices via the Hanna Cloud web application.

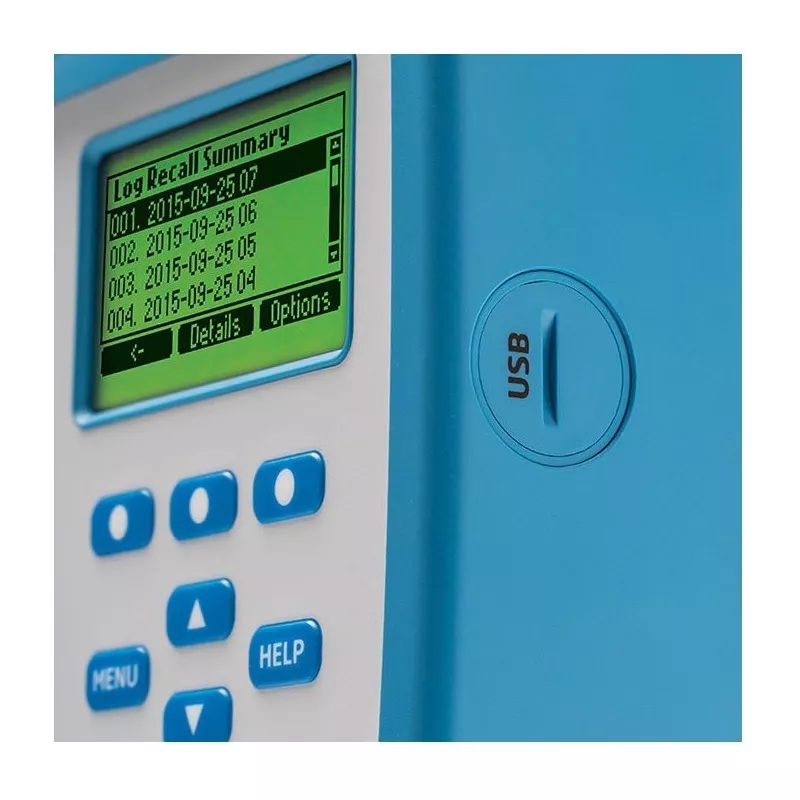

It has a built-in data logger. Measurement readings are recorded every 10 seconds with a new log starting daily or when the instrument is calibrated. Logged data includes pH, ORP and temperature values, last calibration data, configuration and all event data.
Dosing pumps can be remotely activated or deactivated

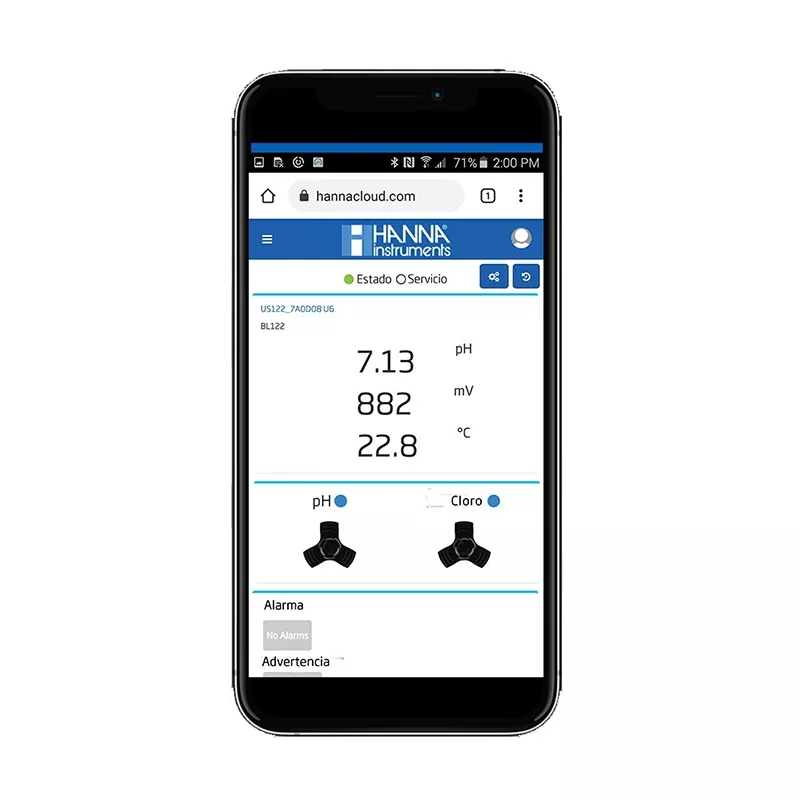

Track data from anywhere with Hanna Cloud Connectivity
www.hannacloud.com
Hanna Cloud is a web-based application that connects you to measurement devices, only available on BL122 models. Measurements and data storage can be accessed from your PC, tablet or phone. Multiple registered devices can be connected to Hanna Cloud.
Measurements, trends, history, device settings, alarms and messages are transmitted to your device as your instrument measures and controls your process. Multiple secondary users can also be added to your device account to monitor measurements and receive emails or pop-up messages from your meter.
Hanna Cloud incorporates technical and administrative security measures to reduce the risk of loss or misuse. These include a secure connection, device identity registration and password encryption.
what are the advantages of the BL122 controller and its probe?
- Easy to mount on the wall and space-saving.
- Just insert a single pH/Redox/temperature electrode directly into the pipe or panel.
- HI1036-18 digital electrode: ensures correct and accurate measurements in all conditions, unlike conventional electrodes, which produce erroneous measurements due to oxidation or humidity.
- DIN connector: greater robustness and insulation.
- Possibility of electrode up to 20 m of cable without low signal problems.
- Long-life electrode (3 years or more depending on use) and low price.
- Matching Pin or "grounding": eliminates magnetic currents/fields generated by devices and electric fields (electrolysis) that alter the pH and ORP measurement.
- Very stable and quick to calibrate.
- Low maintenance: annual replacement of tubes.
- Lower calibration frequency, which makes dosing more precise and reduces chemical consumption.
- Remote display of operation and measurement: greater safety for the user.
- Alarms and warnings: greater control and quicker response in the event of malfunction or lack of chemical product.
Data Sheet
- Pump type
- Peristaltic
- Pump control
- Digital
- Automatic control of
- Chlorine ORP and pH
