Pack Astralpool for liner swimming pools
ref: 13SK58930
ean13: 8432611375345
sku: 58930
- Pack Embedded Astralpool.
- For liner-polyester pools.
- Code: 13SK58930
- Manufactured in white ABS, with float gate and flap for flow regulation.

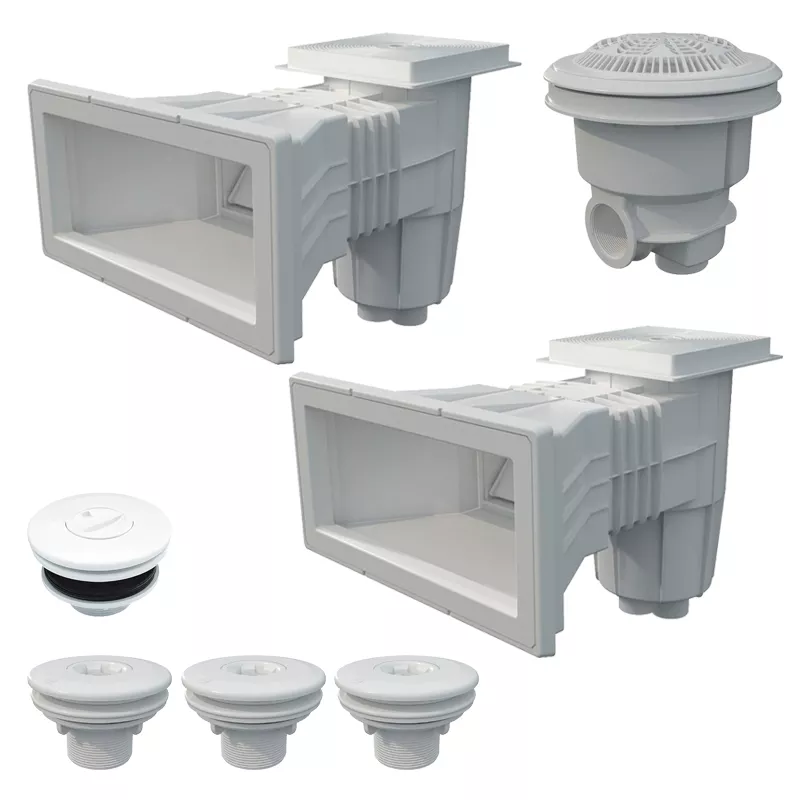

- Includes:
Skimmer mouth extension round cover Astralpool for liner pool (2 units)
Multiflow impulsion nozzle for liner pool (3 units)
Sump Astralpool Norm antivortex grille for liner pool
Suction nozzle for liner pool
€249.00
Free shipping
Technical characteristics
Astralpool built-in pack for liner pools
Building or rehabilitating a liner pool requires technical precision that leaves no room for leaks or dead zones of circulation. It is common to face the problem of a stagnant sheet of water or the accumulation of dirt in the corners due to not having the right pool elements. This AstralPool Integral Pack has been specifically designed to solve these problems, offering an optimized circulation system that guarantees crystal clear and safe water, protecting the integrity of your liner by means of components designed for total watertightness.
Detailed System Features
- Adaptable Multiflow System: The 3 discharge nozzles allow you to select the outlet diameter (14mm, 20mm or 25mm) to adjust the exact flow rate.
- Wide Mouth Skimmers: The wide mouth design of the 2 skimmers maximizes the collection of floating debris.
- UV Protection: ABS material treated to resist solar radiation without yellowing.
- Antivortex Safety Grid: The sump complies with EN 13451-1/3, preventing the formation of dangerous eddies.
- Bayonet locking basket: Large capacity basket securely fixed to prevent floating.

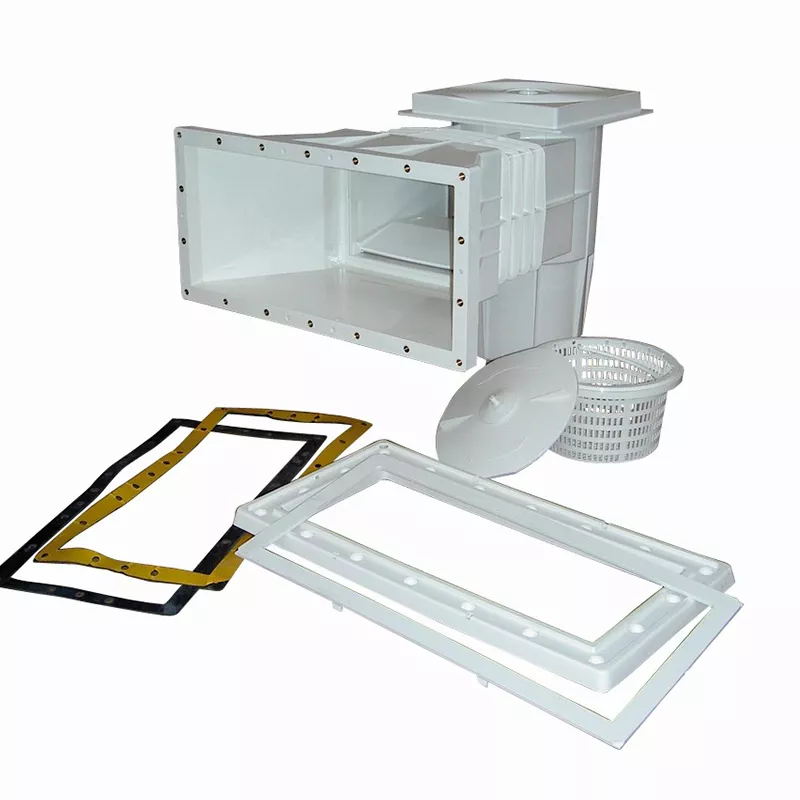

- Special Sealing Gaskets: Supplied with high density adhesive gaskets for a perfect seal.
- Square Adjustable Lid: Allows ± 4 cm level adjustment for a perfect aesthetic finish at the crown.
- Cleaner Connection: Dedicated suction nozzle with safety screw cap.
- Versatile Connections: 2" external and 1½" internal threads, compatible with PVC standard.
- Modular Design: Allows for symmetrical distribution ideal for pool hydraulics.
Technical Data
| Parameter | Value / Detail |
|---|---|
| Material | ABS White Anti-UV |
| Compatibility | Liner and Prefabricated Pools |
| Maximum Skimmer Flow Rate | 7,5 m³/h (x2 units) |
| Maximum Flow Rate Nozzles | 7 m³/h (x3 units) |
| Maximum Sump Flow | 15 m³/h |
| Standards | EN 16582-1, EN 16713-2, EN 13451-1/3 |
Frequently Asked Questions (FAQs)
is this pack suitable for a painted concrete pool?
No, this pack includes specific gaskets and flanges to seal against a liner or reinforced PVC sheet. For traditional concrete without liner, models without gaskets and inserts are required.
how do I adjust the flow rate in the delivery nozzles?
Thanks to the Multiflow system, the nozzle ball is marked with 14, 20 and 25 mm diameters. You only need a punch to open the desired diameter according to the power of your pump.
is it necessary to install both skimmers?
It is recommended to install one skimmer for every 25 m² of water surface. Including two skimmers drastically improves surface cleanliness and ensures constant suction.
how safe is the sump against entrapment?
The sump included is the Norm model with an Antivortex grid. Its design prevents the creation of a central suction vacuum, complying with strict European bather safety standards.
does it include mounting hardware?
Yes, the pack includes all the stainless steel screws, adhesive gaskets and clamping flanges necessary for the correct installation on the liner.
Data Sheet
- Coating
- Liner/ Polyester
- Manufactured in
- Plastic
