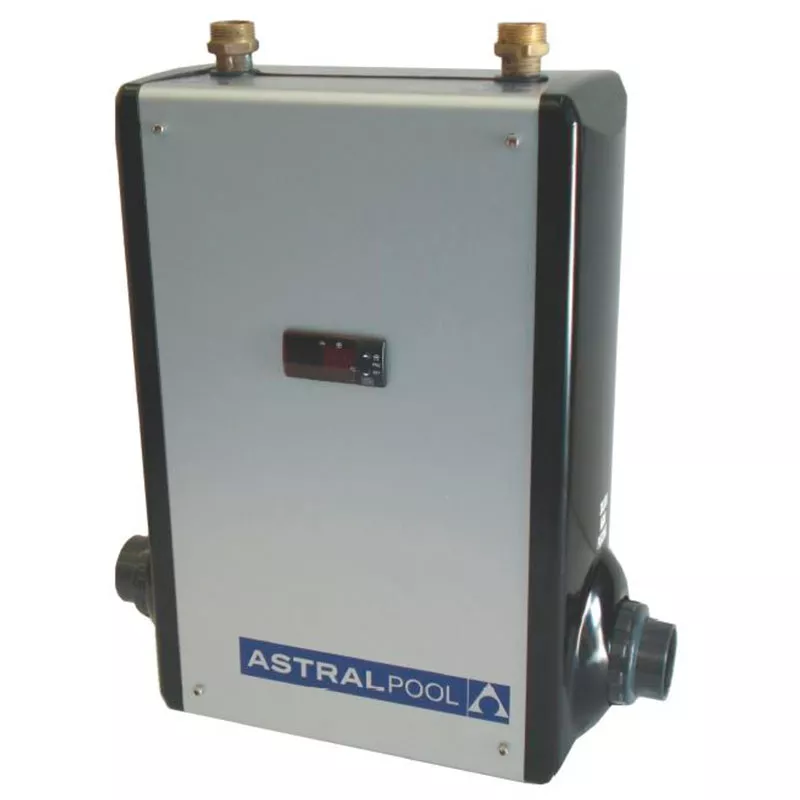

Water-to-Water Heat Exchanger Astralpool Waterheat Equipped TIT-20 KW
ref: 08CA43506
ean13: 8435283927393
sku: 43506
- Equipped water-water exchanger.
- Power: 20 KW.
- Manufacturer: Astralpool.
- Code: 43506.
- Made of Titanium.
- Exterior in Alucoil and ABS plastic.
- Ideal for swimming pools and spas.
- Fully equipped.
€2,895.00
IVA included
Free shipping
Technical characteristics
Waterheat heat exchanger
Heat exchangers for heating water in swimming pools and spas, thanks to the heat exchange between a primary circuit (hot source) and a secondary circuit (cold source to be heated).
Technical characteristics of the heat exchanger Astralpool Waterheat Equipped
- Controller with secondary pump control, with voltage-free contact and timer.
- Outer casing made of Alucoil and ABS plastic.

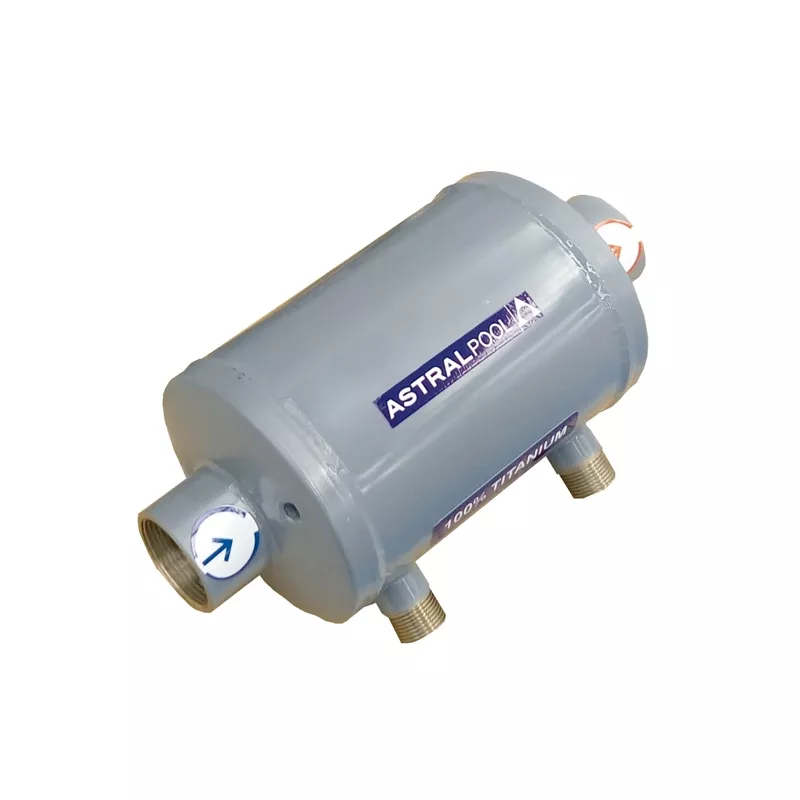

- Titanium body.
- Titanium alloy coil.
- Fully equipped, non-return valve, primary recirculation pump and control thermostat with immersion probe.
- Power: 20 KW
- Primary working pressure: 0,12 bar.
- Secondary working pressure: 0,14 bar.
 |
|
|
|

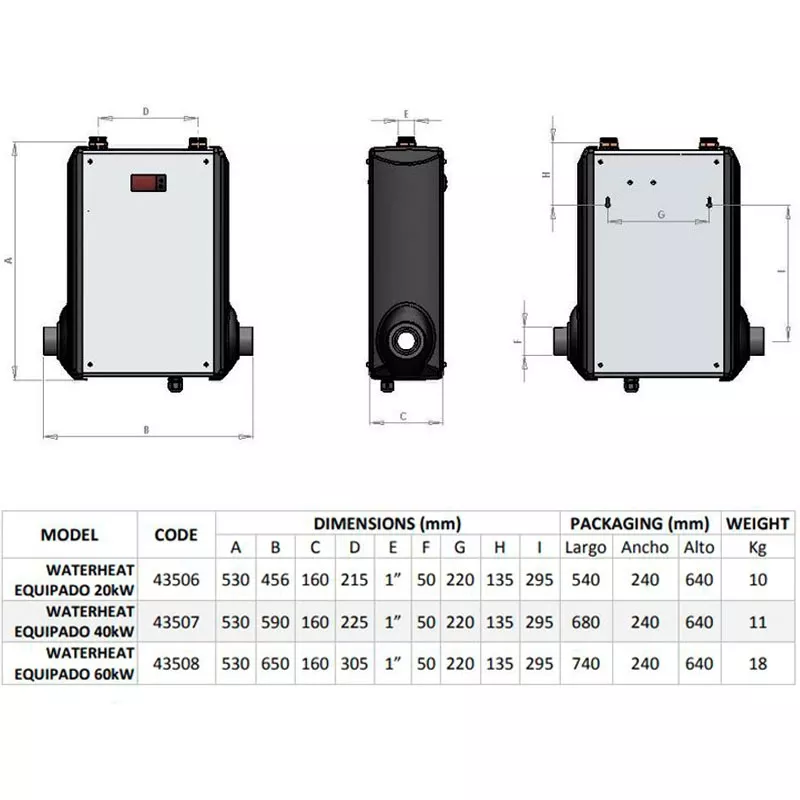

| Waterheat Equipped 20 | Waterheat Equipped 40 | Waterheat Equipped 60 | |
| Technical characteristics | |||
| KW | 20 | 40 | 60 |
| Primary m3/h | 1,6 | 2,7 | 3 |
| Primary Press (bar) | 0,12 | 0,41 | 0,70 |
| Secon m3/h | 10 | 15 | 20 |
| Secon. Press (bar) | 0,14 | 0,24 | 0,29 |
