75 KW Pahlén Hi-Flow titanium heat exchanger T75
ref: 08CA36890
sku: 11334
- Water-water exchanger.
- Power: 75 KW.
- Manufacturer: Pahlén.
- Made of titanium.
- Ideal for salt water pools.
€1,479.00
IVA included
Free shipping
Technical characteristics
Pahlén Hi-Flow heat exchanger
Hi-Flow Titanium is a spiral heat exchanger made of titanium for the most demanding installations where there is a high risk of corrosion.
Especially suitable for heating swimming pools with solar collectors or boilers.
Titanium version recommended for salt water pools or pools treated with salt chlorinators.
Technical characteristics of the Pahlén Hi-Flow heat exchanger
- Lightweight and compact design.
- Made of titanium.
- Coil for heating medium.
- Connections with internal thread (secondary side).
- Probe pocket.
- Adjustable acid-proof stainless steel supports.
- Power: 75 KW
- Primary working pressure Drop H (m): 5.2 bar.
- Secondary working pressure Drop H (m): 1.7 bar.
- Capacity with temperature difference of 60º-70º.
- Maximum working temperature: 110 ºC.
INSTALLATION
All models can be installed with heaters, heat pumps, solar panels or other heat sources.
Water-water exchanger made of AISI-316 stainless steel for maximum heat transfer efficiency.
Ideal for installations where there is a high heat demand with a low pressure drop:
- Solar collectors.
- Boilers.
- Swimming pools.
 |
|
|
|

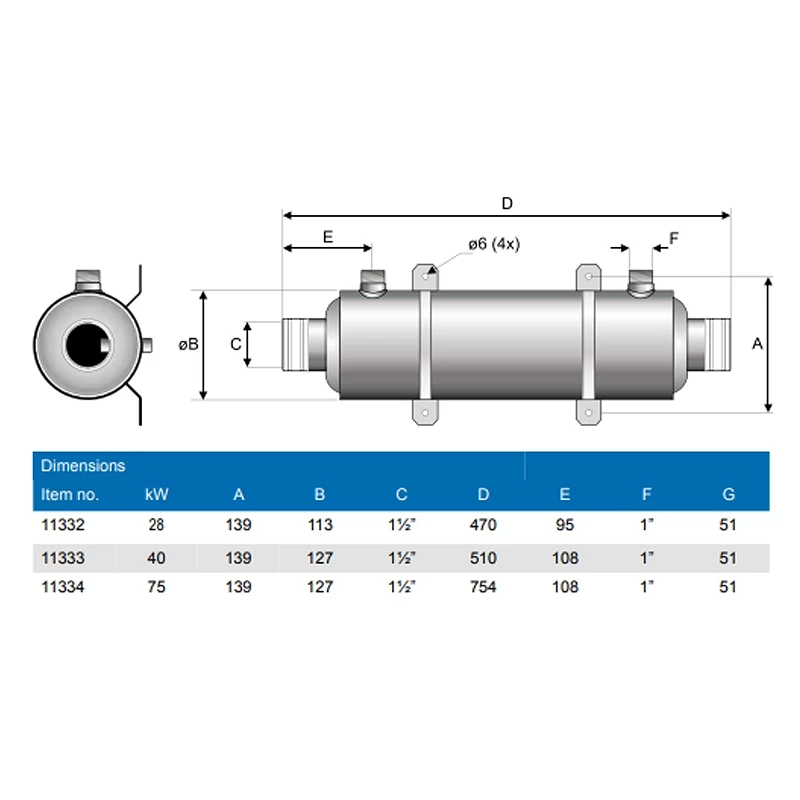

| Hi-Flow 28 | Hi-Flow 40 | Hi-Flow 75 | |
| Technical Characteristics | |||
| KW | 28 | 40 | 75 |
| kBtu/h | 95 | 135 | 260 |
| Primary L/min | 20 | 40 | 45 |
| Primary Press drop H (m) | 1.0 | 2.3 | 5.2 |
| Secon L/Min | 300 | 350 | 350 |
| Secon. Press drop H (m) | 1.1 | 1.7 | 1.7 |
