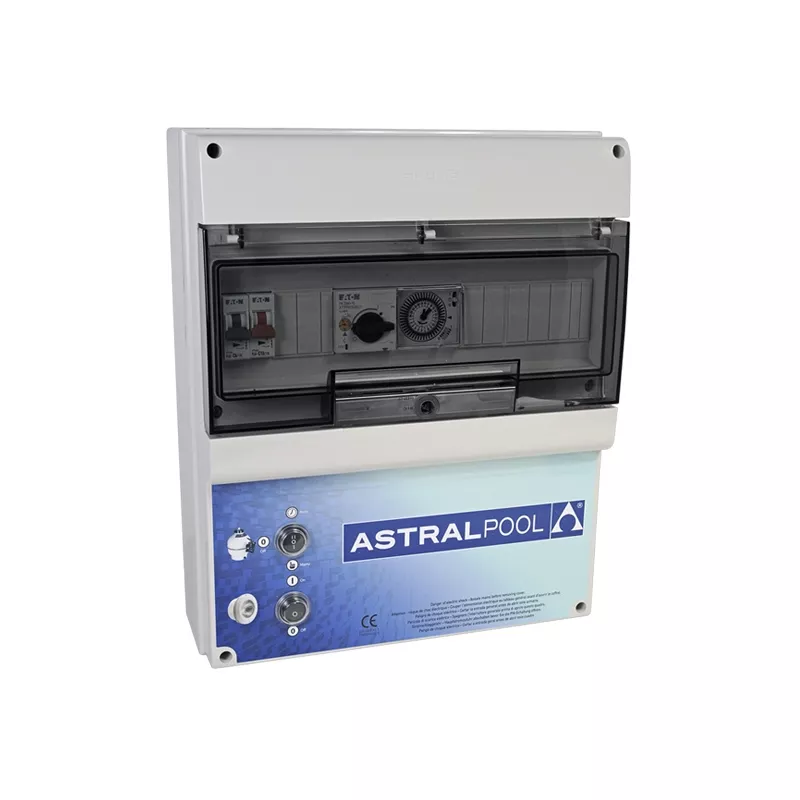

Type D swimming pool control panel with lighting control + 300W transformer
ref: 04AR69919
ean13: 8435283952418
sku: 69919
- Cabinet panel for filtration pump and lighting control.
- Type D:
- for 1.5 hp pumps in single-phase current
- for 4 hp pumps in three-phase current - 300 W transformer.
- Transformer included.
- Timer.
- Magneto-thermal protection.
- Light switch.
€379.00
Free shipping
Technical characteristics
Swimming pool control panel with lighting control + 300 W transformer
Type D pool control panel, for one pump and lighting control.
- Protection by circuit breaker.
- Contactor.
- 24h timer.
- 3 position switch (auto/0/manual).
- Switch for pool lights.
- Transformer included.
Installation and user manual
- The installation of an electrical panel must be carried out by a qualified electrician.
- Never work on a live switchboard. Switch off the power supply to the main switchboard before any work
. - Always install the electrical panel out of humidity, rain and water splashes. It must be installed in a technical room or
at least 3.5 metres from the pool. - The electrical panel must not be used as a junction box. Never connect external equipment to the electrical panel.
- Adjust the magneto-thermal motor circuit breaker in relation to the actual current consumed by the pump (refer to its nameplate
). - For electrical panels with a 30mA residual current circuit breaker, periodically test the safety device by pressing the
"test" button. - Periodically adjust the connections.
TYPE D BOARD:
- Single-phase current (230 v): for pumps of 1.5 HP.
- Three-phase current (400 v): for 4 HP pumps.
Data Sheet
- Type of current
- Single-phase 220V
- Lighting control
- Yes
- Transformer
- 300 W
Verified Reviews
View the trust certificate
- For further information on the nature of the review controls, as well as the possibility of contacting the author of the review please consult our CGU.
- No inducements have been provided for these reviews
- Reviews are published and kept for a period of five years
- Reviews can not be modified: If a customer wishes to modify their review then they can do so by contacting Verified Reviews directly to remove the existing review and publish an amended one
- The reasons for deletion of reviews are available here.
Sort reviews by :
Anonymous customer published the 14/10/2020 following an order made on 18/09/2020
1/5
Su interior es muy pobre, ni un mísero diferencial ni magnetotérmico… Las conexiones no centralizadas, cada una en un punto diferente. La fijación de la placa metálica de los automatismos, penosa, ha sido preciso meter dos tornillos en los extremos para que no se caiga. En resumen, si eso lo hago yo en mi empresa, me echan al día siguiente.
