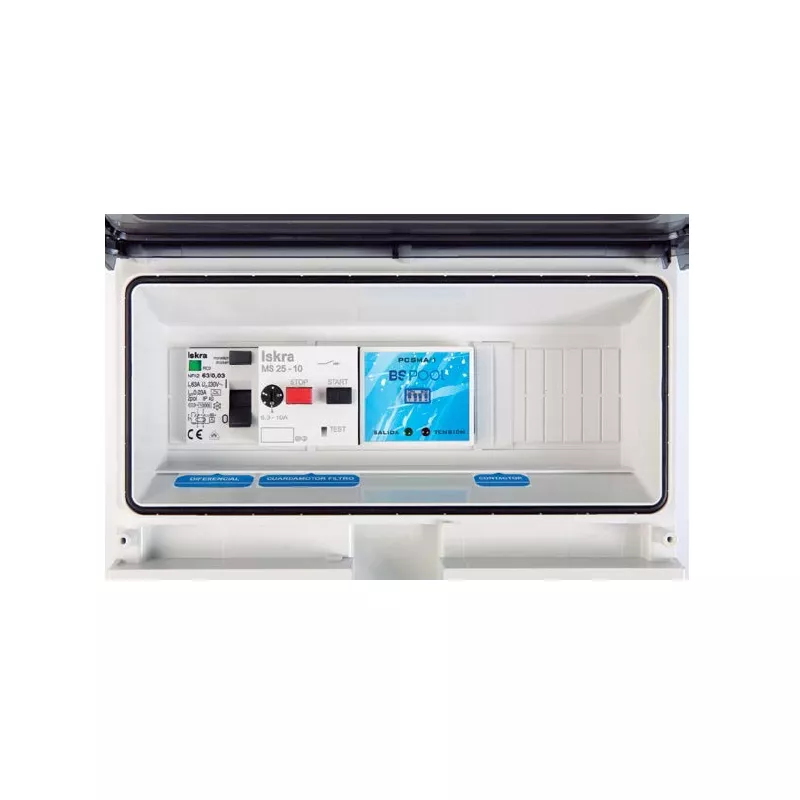

Cuadro maniobra bomba 2 CV con sistema pulsador piezoeléctrico

2 HP pump control panel with piezoelectric pushbutton system

ref: 04ARPC934DFPCSMA ean13: 8436617056253 sku: PC934
  • Control panel for the protection and control of spas and bathtubs.
  • Pump control by means of piezoelectric push button.
  • Number of pumps: 1
  • Suitable for 2 HP pumps.
  • Voltage: 230 VAC.
  • Push button not included.
  • Compatible with push buttons:
    - BLUE push button
    - ALUMINIUM push button
    - RED push button
    - INOX push button
Questions about this product?
Discuss it with us and ask us. Our technicians will solve your doubts.
€285.00 IVA included
Free shipping
Free Shipping + info

Technical characteristics

Control panel with piezoelectric pushbutton

  • Control panel for the protection and control of spas and bathtubs.
  • Pump control by means of piezoelectric push button.
  • Polycarbonate IP65 enclosure.
  • Supply voltage 230 VAC.
  • Bipolar differential 40A with 30mA sensitivity.
  • Number of pumps: One single-phase pump.
  • Suitable for 2 HP pumps.
  • Thermomagnetic circuit breaker adjustable in intensity depending on the power of the pump.
  • Pushbutton not included.
  • Compatible with push buttons:
    - BLUE push button
    - ALUMINIUM push button
    - RED push button
    - INOX push button
