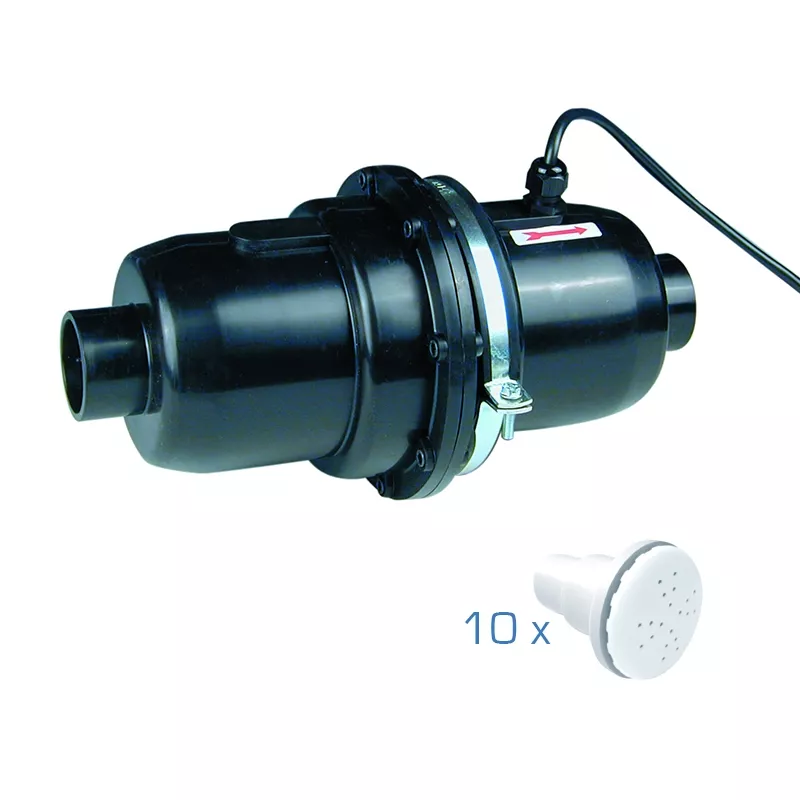

Easy Air kit for spas

KIT CONSISTING OF:

• 1 blower pump Astralpool for discontinuous use of 1.5 CV single-phase.
• 10 air nozzles for gluing.

ASTRALPOOL BLOWER PUMP FOR DISCONTINUOUS USE 1,5 HP SINGLE-PHASE

• Manufacturer: Astralpool.
• Power: 1,5 CV.
• Current: single-phase.
• Easy horizontal or vertical installation.
• Discontinuous use.
• Ideal for air injection in water (spas, jacuzzis and removable swimming pools).
• Robust and reliable.
• Maximum flow rate: 133 ^m3/h.

FLEXIBLE RUBBER PNEUMATIC PUSH BUTTON

what is a pneumatic push button used for?

It is used to start and stop the massage and hydromassage functions in spas, jacuzzis or removable pools.

how does the pneumatic button work?

By pressing the pneumatic button, the air signal is transmitted, which activates a pneumatic switch to start the air pump and thus start the blowing nozzles. If the nozzles are in operation, pressing the push button again will transmit an air signal to stop the pump and thus stop the blowing nozzles.

WHITE ABS AIR NOZZLES FOR GLUING

• Made of white ABS for gluing Ø20 mm.
• Allows the distribution of air in the water by means of the blower pump.
• This type of nozzle does not fit in Ø20 mm pipe , it is for gluing in Ø25 PN16 pipe up to the thinnest part, and for Ø32 PN16 pipe in the thickest part.
• Flow rate from 5,7 to 7,5 ^m3/h.
