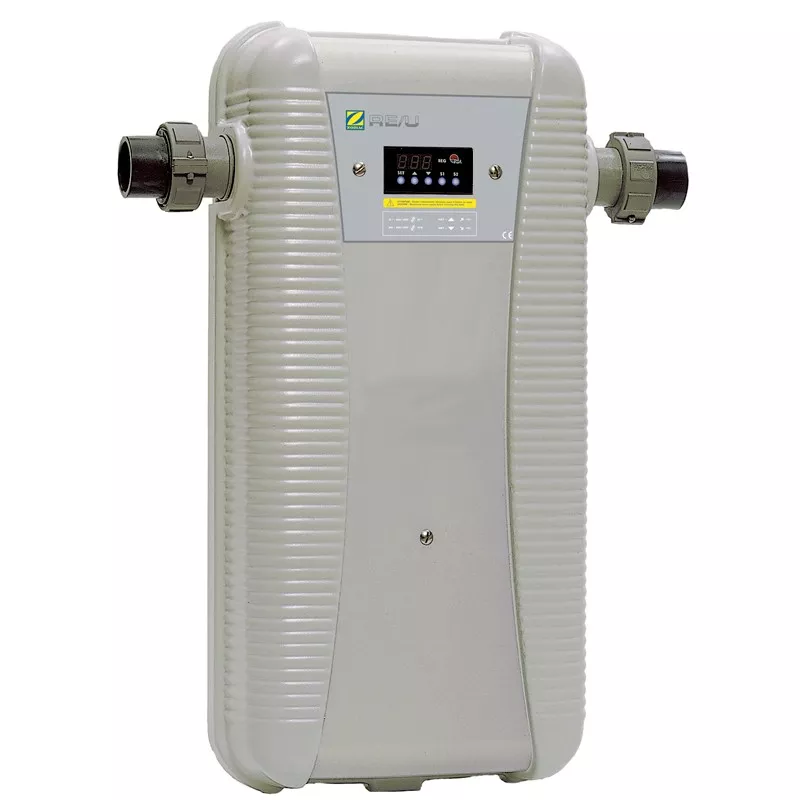

Swimming pool heater Zodiac RE/U 12 single-phase
ref: 08CAW40TIT12M
ean13: 9317545032504
sku: W40TIT12M
- Heater Zodiac mod. RE/U
- Cod. W40TIT12M
- Power 12KW SINGLE PHASE
- TITANIUM heater and polyamide casing
- Very resistant EPDM flanges and Hypalon connections
- Easy to use and maintain complete digital regulation with LCD display
- Easy installation with 50-63 mm Ø connection
- Compact with indifferent flow direction
- Dimensions 800 mm high, 600 mm long and 143 mm wide
€2,129.00
IVA included
Free shipping
Technical characteristics
Heater Zodiac RE/U
The electric heater is an alternative for heating swimming pool water. These devices are easy to install. They are ideal for heating small pools, spas or whirlpools.
The Zodiac RE/U 12 is ideal for heating pools up to 80 m3.
The electric heater is the simplest heating solution to install. It is installed directly in the pool's filtration circuit.
The electric heaters Zodiac-PSA consist of a polyamide tube and a titanium heating element. The water is heated when it comes into contact with the resistance inside the tube.
Complete, cable-connected system that does not require an additional control unit. U-shaped inner body for simple assembly. The unit is supplied in a housing with a digital thermostat.
Autonomous regulator that allows reading the water temperature, modifying the set point, connecting the heating elements independently.It has LED operation indicator and timer. IP65.
Characteristics RE/U 12

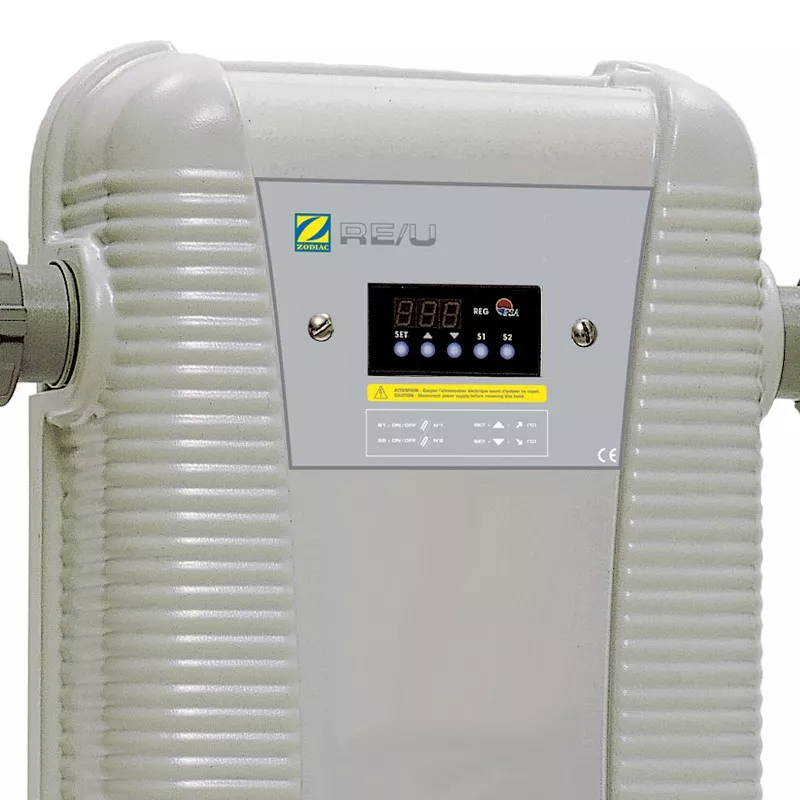

- Electric panel with regulation thermostat (+- 0,5 ºC) with LCD display and timer)
- Flow switch.
- EPDM flanges
- HYPALON connectors.
- High temperature limiter.
- Illuminated control switch + indicators.
- Power meters.
- Maximum volume: 80 m3.
- Heating element power: 6+6 kW.
- Hydraulic connection: PVC Ø50 or Ø63 mm.
- 2-year warranty
Data Sheet
- Power input (at 15ºC)
- 10 - 12 kw
- Resistance in
- Titanium
- Thermostat
- Digital
