Interruptor digital con programación semanal (1 canal)
Interruptor digital con programación semanal (1 canal) Interruptor digital con programación semanal (1 canal) Interruptor digital con programación semanal (1 canal)

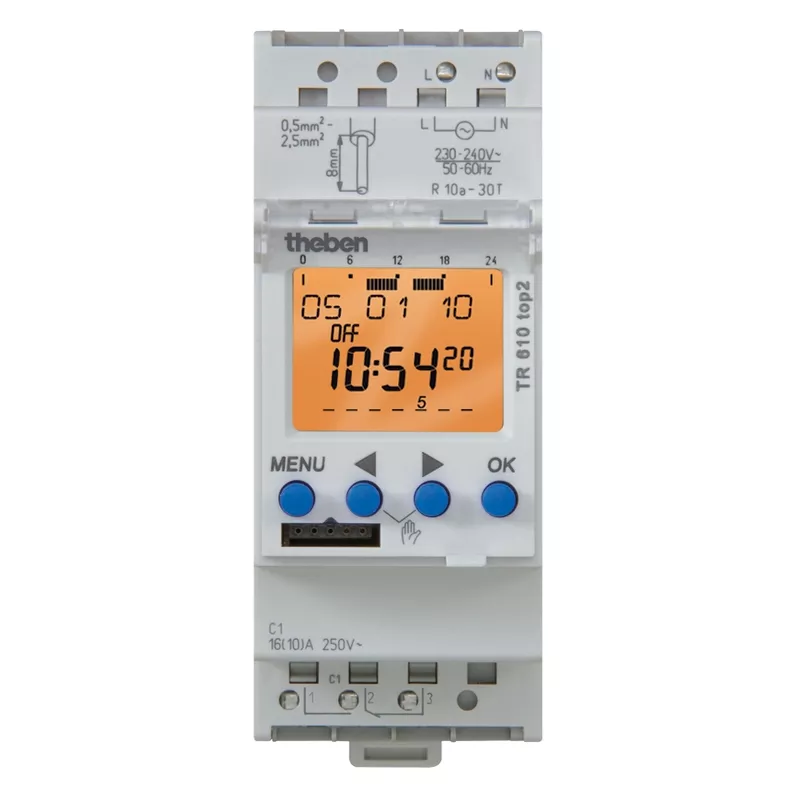

Digital switch Theben with weekly programming (1 channel)

ref: 04AR6100102
  • Digital switch.
  • Digital programming.
  • Channels: 1.
  • Manufacturer: Theben.
  • 56 programming memories.
  • Mounting type: DIN rail.
  • Automatic summer/winter time changeover.
Questions about this product?
Discuss it with us and ask us. Our technicians will solve your doubts.
Ask price
€9.90 of Shipping + info

Technical characteristics

Switch Theben

  • Digital time switches with weekly programming
  • 1 channel
  • Quick-action terminals
    - For 2 conductors each
    - Cable or wire (with or without cable gland)
    - Cable diameter: 0.5 - 2.5 mm²
    - Control button for disconnecting the plug-in connection
  • User guidance in text form on the display
    - Pre-set date and time
    - Complete controllability without mains connection
  • 56 programming memories
  • Interface for OBELISK top2 memory card (PC programming)
    - 2nd switching programme can be plugged in
    - Copy programmes
    - Save programmes
  • 10-year power reserve (lithium battery)
  • Zero-crossing switching for relay protection and for switching high lighting power (not available for 24 V products)
  • ON/OFF switching times
  • Switching pre-selection
  • Permanent ON/OFF switching
  • Integrated hour counter
    - Resetting to initial state possible
    - Maintenance function for monitoring maintenance intervals
  • Holiday programmable by date
  • Display illumination (can be switched off)
  • PIN code
  • Automatic summer/winter time changeover
    - Deactivatable
    - Predefined switching rules for Europe, USA and other countries
    - Possibility to select own switching rule or switching on a fixed date
