Swimming pool dehumidifier Astralpool CDP LINE-4

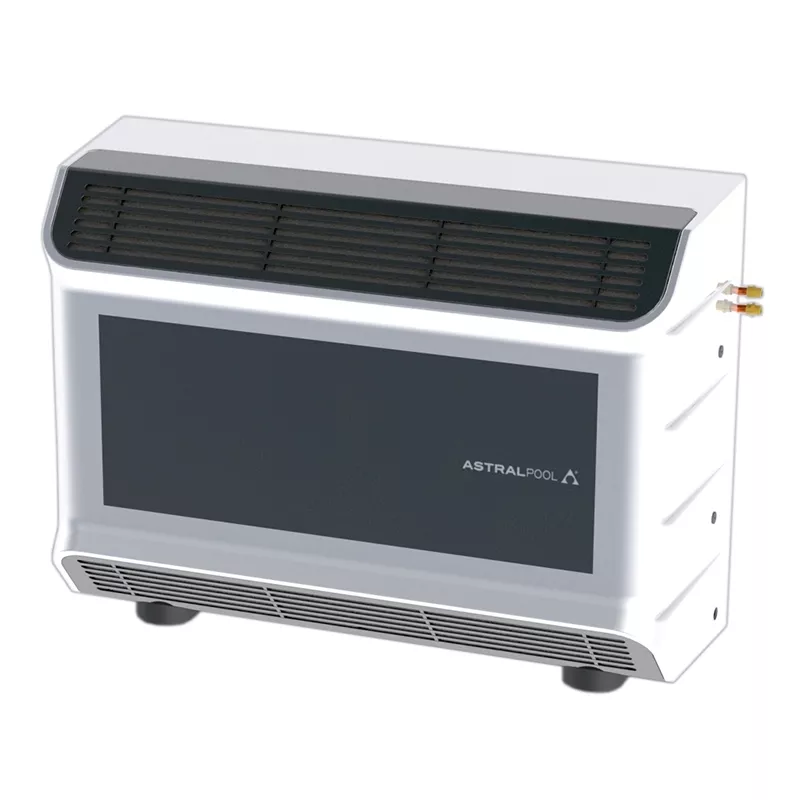

Dehumidifier Astralpool CDP LINE-4

The new CPD LINE v2 dehumidifier console is used in installations where individual humidity and temperature control of the area is required, taking advantage of the latent heat of vaporisation and the equipment's own performance in heating the ambient air in small swimming pools, baths, changing rooms and bathrooms.

• Monoblock evaporator and condenser coil made of copper piping with turbo-lacquered aluminium fins (especially for corrosive environments).
• Hermetic compressor with internal protection, crankcase heater and silencer.
• A nitrogenised, dehydrated and deoxidised copper refrigerant circuit.
• Optional electric or hot water heating coil.

Among the new innovations introduced by this equipment, we must highlight the expanded polypropylene structure (EPP) which reduces its weight and noise level, and the front with an image that can be customised by the customer as an option.

Assembly and maintenance

• Easy and quick assembly and maintenance access.
• External load shroud sockets to connect pressure gauges.
• Easy cleaning of filters and machine.

General operating conditions

• Installation air temperature: 28º C.
• Humidity: 65%.
• Minimum installation air temperature: 20º C.

News

Externally

• New, more attractive design, with simple, elegant lines.
• New, simpler and faster wall mounting system.
• New user interface, more visible and attractive.
• New front panel, lighter and easier to install and uninstall.
• New front cover that can be customised with the design chosen by the customer. Photographic quality.

Internally

• Redesign of internal components to facilitate accessibility.
• New generation of more reliable and quieter compressors.
• New generation of more reliable and quieter heliocentrifugal fans.
• New modular internal structure to facilitate component replacement.
• New plastic internal structure that reduces the noise level of the equipment.
